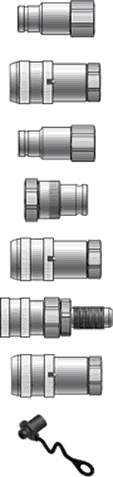

Gates G949 Series Couplers (Flush Face - HTMA)

 Print This Page

Male Flush Face Valve to Female O-Ring Boss

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
4MQFF-4FB	7252-87055	7/16-20	3000	12000	.25
6MQFF-8FB	7252-88025	3/4-16	3000	12000	.02
8CPMQFF-8FB*	7252-87445	3/4-16	3000	12000	1.00
8CPMQFF-10FB*	7252-87455	7/8-14	3000	12000	.90
8CPMQFF-12FB*	7252-87465	7/8-14	3000	12000	.85
8MQFF-8FB	7252-87065	3/4-16	3000	12000	.65
8MQFF-12FB	7252-87075	1 1/16-12	3000	12000	.60
10MQFF-12FB	7252-87085	1 1/16-12	3000	12000	.85
12MQFF-12FB	7252-87095	1 1/16-12	3000	12000	1.10
16MQFF-16FB	7252-87105	1 5/16-12	3000	12000	1.60

* Connect-under-pressure coupler.

Male Flush Face Valve to Female Pipe

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
4MQFF-4FP	7252-87015	1/4-18	3000	12000	.20
6MQFF-6FP	7252-88005	3/8-18	3000	12000	.25
6MQFF-8FP	7252-88015	3/8-14	3000	12000	.29
8CPMQFF-8FP*	7252-87435	1/2-14	3000	12000	1.00
8MQFF-8FP	7252-87025	1/2-14	3000	12000	.70
12MQFF-12FP	7252-87035	3/4-14	3000	12000	1.15
16MQFF-16FP	7252-87045	1-11 1/2	3000	12000	1.65

* Connect-under-pressure coupler.

Female Flush Face Valve to Female O-Ring Boss

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
4FQFF-4FB	7252-87195	7/16-20	3000	12000	.40
6FQFF-8FB	7252-88055	3/4-16	3000	12000	.44
8CPFQFF-8FB*	7252-87485	3/4-16	3000	12000	1.25
8CPFQFF-10FB*	7252-87495	7/8-14	3000	12000	1.25
8CPFQFF-12FB*	7252-87505	1 1/6-12	3000	12000	1.15
8FQFF-8FB	7252-87205	3/4-16	3000	12000	1.05
8FQFF-12FB	7252-87215	1 1/6-12	3000	12000	1.05
10FQFF-12FB	7252-87225	1 1/6-12	3000	12000	1.20
12FQFF-12FB	7252-87235	1 1/6-12	3000	12000	1.75
16FQFF-16FB	7252-87245	1 5/16-12	3000	12000	2.85

* Connect-under-pressure coupler.

Male Flush Face Valve to Female British Pipe Parallel

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
4MQFF-4FBPP	7252-87115	1/4-19	4568	18270	.20
8MQFF-8FBPP	7252-87125	1/2-14	3625	14500	.65
12MQFF-12FBPP	7252-87135	3/4-14	3625	14500	1.15
16MQFF-16FBPP	7252-87145	1-11	2900	11600	1.60

Male Flush Face Valve to JIC 37° Flare Bulkhead

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
8MQFF-10BKHD	7252-87395	7/8-14	3625	14500	.65
10MQFF-12BKHD	7252-87405	1 1/16-12	3625	14500	.95

Female Flush Face Valve to Female Pipe

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
4FQFF-4FP	7252-87155	1/4-18	3000	12000	.40
6FQFF-6FP	7252-88035	3/8-18	3000	12000	.48
6FQFF-8FP	7252-88045	1/2-14	3000	12000	.44
8CPFQFF-8FP*	7252-87475	1/2-14	3000	12000	1.20
8FQFF-8FP	7252-87165	1/2-14	3000	12000	1.15
12FQFF-12FP	7252-87175	3/4-14	3000	12000	1.75
16FQFF-16FP	7252-87185	1-11 1/2	3000	12000	2.90

* Connect-under-pressure coupler.

Female Flush Face to JIC 37° Flare Bulkhead

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
8FQFF-10BKHD	7252-87415	7/8-14	3625	14500	1.10
10FQFF-12BKHD	7252-87425	1 1/16-12	3625	14500	1.25

Female Flush Face Valve to Female British Pipe Parallel

Descr.	Prod. No.	Thread	Burst Pressure	Working Pressure	Weight
			psi	psi	Lbs.
8FQFF-8FBPP	7252-87265	1/2-14	3625	14500	1.10
12FQFF-12FBPP	7252-87275	3/4-14	3625	14500	1.75
16FQFF-16FBPP	7252-87285	1-11	2900	11600	2.90

Dust Plug/Cap Combination

Descr.	Prod. No.	Weight
4QDFFDP/C	7252-87535	.02
6QDFFDP/C	7252-87545	.02
8QDFFDP/C	7252-87555	.02
10QDFFDP/C	7252-87565	.02
12QDFFDP/C	7252-87575	.20
16QDFFDP/C	7252-87585	.20
