Dixon Nominal Smooth Bore PTFE Hose Fittings

Description:

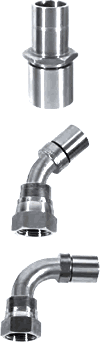

Tube End Stubs - 45° FJIC - 90° FJIC

Coupling Category

PTFE Hose & Fittings

Manufacturer

Dixon PTFE Hose & Fittings

Tube End Stubs

•   crimp collars for all nominal fittings are included
Hose Size Thread Size 304 Stainless Steel Part #
dash 4 1/4" TES-04-04
dash 6 3/8" TES-06-06
dash 8 1/2" TES-08-08
dash 12 3/4" TES-12-12
dash 16 1" TES-16-16


45° FJIC

Hose Size Thread Size 304 Stain. Steel Part # Carbon Steel Part #
dash 3 3/16" FJS45-03-03 FJC45-03-03
dash 4 1/4" FJS45-04-04 FJC45-04-04
dash 5 5/16" FJS45-05-05 FJC45-05-05
dash 6 3/8" FJS45-06-06 FJC45-06-06
dash 8 1/2" FJS45-08-08 FJC45-08-08
dash 10 5/8" FJS45-10-10 FJC45-10-10
dash 12 3/4" FJS45-12-12 FJC45-12-12
dash 16 1" FJS45-16-16 FJC45-16-16
dash 20Z 1-1/4" FJS45-20Z-20 FJC45-20Z-20


90° FJIC

Hose Size Thread Size 304 Stain. Steel Part # Carbon Steel Part #
dash 3 3/16" FJS90-03-03 FJC90-03-03
dash 4 1/4" FJS90-04-04 FJC90-04-04
dash 5 5/16" FJS90-05-05 FJC90-05-05
dash 6 3/8" FJS90-06-06 FJC90-06-06
dash 8 1/2" FJS90-08-08 FJC90-08-08
dash 10 5/8" FJS90-10-10 FJC90-10-10
dash 12 3/4" FJS90-12-12 FJC90-12-12
dash 16 1" FJS90-16-16 FJC90-16-16
dash 20Z 1-1/4" FJS90-20Z-20 FJC90-20Z-20
Dixon Nominal Smooth Bore PTFE Hose Fittings
