Series 1000 - Sockets

Description:

1/4in. Nominal

Coupling Category

One-Way Couplings

Manufacturer

Hansen

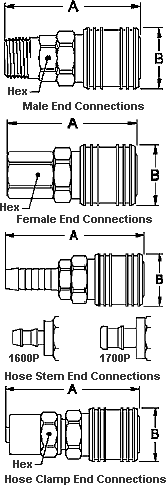

Male End Connections
Female End Connections
Part No.
Thread
Dimension
Part No.
Thread
Dimensions
Brass
Size
A
B
HEX

Size
A
B
HEX
900
1/8-27 NPTF
2.07
1.0
0.69
800
1/8-27 NPTF
1.91
1.0
0.69
1100
1/4-18 NPTF
2.22
1.0
0.69
1000
1/4-18 NPTF
1.91
1.0
0.69
1300
3/8-18 NPTF
2.22
1.0
0.69
1200
3/8-18 NPTF
2.19
1.0
0.75
1000-43
7/16–20*
2.16
1.0
0.69
Stainless

1000-63
5/8–18*
2.29
1.0
0.69
LL-1000
1/4-18 NPTF
1.91
1.0
0.69
Stainless

LL-1100
1/4-18 NPTF
2.22
1.0
0.69


hosetem End Connections
Part No.
Hose I.D.
Dimensions
A
B
1600
1/4"
2.66
1.0
1600P‡
1/4"
2.44
1.0
1700
3/8"
2.65
1.0
1700P‡
3/8"
2.54
1.0
1800
5/16"
2.66
1.0

Hose Clamp End Connections
Part No.
Hose
Dimensions
I.D.
O.D.
A
B
HEX
1-SA0
3/16"
7/16"
2.69
1.0
0.56
1-SA3
3/16"
1/2"
2.69
1.0
0.63
1-SB1
1/4"
15/32"
2.75
1.0
0.63
1-SB3
1/4"
1/2"
2.75
1.0
0.63
1-SB5
1/4"
9/16"
2.75
1.0
0.69
1-SB7
1/4"
5/8"
2.75
1.0
0.75
1-SC5
5/16"
9/16"
2.82
1.0
0.69
1-SC7
5/16"
5/8"
2.82
1.0
0.75
1-SC9
5/16"
11/16"
2.82
1.0
0.81
1-SD5
3/8"
9/16"
2.88
1.0
0.69
1-SD7
3/8"
5/8"
2.88
1.0
0.75
1-SD9
3/8"
11/16"
2.88
1.0
0.81
1-SD11
3/8"
3/4"
2.88
1.0
0.88
* 45° Male Flare
‡ For use with push-on style hose.
All dimensions in inches.
