Series 5000 - Plugs

Description:

1/2in. Nominal

Coupling Category

One-Way Couplings

Manufacturer

Hansen

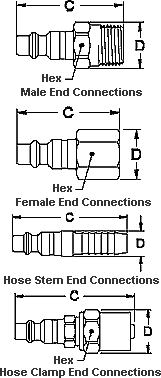

Male End Connections
Female End Connections
Part.No.
Thread
Dimensions
Part.No.
Thread
Dimensions
Steel
Size
C
D
HEX
Steel
Size
C
D
HEX
50
1/4-18 NPTF
2.25
0.79
0.69
53-A
1/4-18 NPTF
1.92
0.79
0.69
50G†
1/4-18 NPTF
2.9
0.98
0.88
53
3/8-18 NPTF
2.06
0.94
0.81
52
3/8-18 NPTF
2.25
0.87
0.75
53G†
3/8-18 NPTF
2.90
0.98
0.88
52G†
3/8-18 NPTF
2.90
0.98
0.88
55
1/2-14 NPTF
2.34
1.15
1.00
54
1/2-14 NPTF
2.44
1.01
0.88
55G†
1/2-14 NPTF
3.17
0.98
0.88
54G†
1/2-14 NPTF
3.09
0.98
0.88
57
3/4-14 NPTF
2.44
1.37
1.19
56
3/4-14 NPTF
2.50
1.23
1.06

56G†
3/4-14 NPTF
3.14
1.19
1.06

Brass

B-52
3/8-18 NPTF
2.25
0.70
0.63

B-54
1/2-14 NPTF
2.44
0.77
0.69


hosetem End Connections
Hose Clamp End Connections
Part.No.
Hose I.D.
Dimensions
Part.No.
Hose
Dimensions
Steel
C
D
Steel
I.D.
O.D.
C
D
HEX
585
5/16"
2.66
0.69
5-PB1
1/4"
15/32"
2.81
0.70
0.63
585G†
5/16"
3.37
0.98
5-PB3
1/4"
1/2"
2.81
0.70
0.63
59
3/8"
2.66
0.69
5-PB5
1/4"
9/16"
2.81
0.77
0.69
59G†
3/8"
3.37
0.98
5-PB7
1/4"
5/8"
2.81
0.84
0.75
60
1/2"
2.66
0.75
5-PD5
3/8"
9/16"
2.94
0.77
0.69
60G†
1/2"
3.37
0.98
5-PD7
3/8"
5/8"
2.94
0.84
0.75
61
3/4"
3.50
1.00
5-PD9
3/8"
11/16"
2.94
0.91
0.81
61G†
3/4"
4.22
0.98
5-PD11
3/8"
3/4"
2.94
0.98
0.88
Brass

5-PD13
3/8"
13/16"
2.94
1.05
0.94
B-60
1/2"
2.75
0.88
5-PD15
3/8"
7/8"
2.94
1.12
1.00

5-PP13
1/2"
13/16"
3.62
1.05
0.94

5-PP15
1/2"
7/8"
3.62
1.12
1.00

5-PP17
1/2"
15/16"
3.62
1.19
1.06

5-PP19
1/2"
1"
3.62
1.26
1.13

5-PR23
3/4"
1-1/8"
3.75
1.40
1.25

5-PR25
3/4"
1-3/16"
3.75
1.47
1.31

5-PR27
3/4"
1-1/4"
3.75
1.54
1.38

† With Bleeder Ball Check – Reduces hose whip when disconnecting.
All dimensions in inches.
