Series 3RL - Sockets

Description:

3/8in. Nominal

Coupling Category

One-Way Couplings

Manufacturer

Hansen

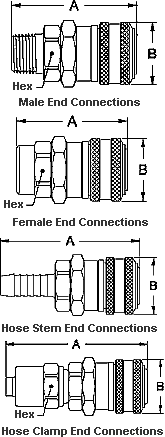

Male End Connections
Female End Connections
Part.No.
Thread
Dimensions
Part.No.
Thread
Dimensions
Size
A
B
HEX
Size
A
B
HEX
3-R15
1/4-18 NPTF
2.34
1.31
1.00
3-R16
1/4-18 NPTF
2.29
1.31
1.00
3-R20
3/8-18 NPTF
2.35
1.31
1.00
3-R21
3/8-18 NPTF
2.35
1.31
1.00
3-R25
1/2-14 NPTF
2.54
1.31
1.00
3-R26
1/2-14 NPTF
2.63
1.31
1.00
3-R30
3/4-14 NPTF
2.54
1.31
1.06
3-R31A
3/4-14 NPTF
2.66
1.31
1.19

hosetem End Connections
Hose Clamp End Connections
Part.No.
Hose I.D.
Dimensions
Part.No.
Hose
Dimensions
A
B
I.D.
O.D.
A
B
HEX
3-R17
1/4"
2.82
1.31
3-R23D5
3/8"
9/16"
3.06
1.31
0.69
3-R195
5/16"
2.85
1.31
3-R23D7
3/8"
5/8"
3.06
1.31
0.75
3-R22
3/8"
2.89
1.31
3-R23D9
3/8"
11/16"
3.06
1.31
0.81
3-R27
1/2"
2.81
1.31
3-R23D11
3/8"
3/4"
3.06
1.31
0.88
3-R32
3/4"
3.66
1.31
3-R23D13
3/8"
13/16"
3.06
1.31
0.94

3-R23D15
3/8"
7/8"
3.06
1.31
1.00

3-R28P13
1/2"
13/16"
3.66
1.31
0.94

3-R28P15
1/2"
7/8"
3.66
1.31
1.00

3-R28P17
1/2"
15/16"
3.66
1.31
1.06

3-R28P19
1/2"
1"
3.66
1.31
1.13

3-R33R23
3/4"
1-1/8"
3.79
1.31
1.25

3-R33R25
3/4"
1-3/16"
3.79
1.31
1.31

3-R33R27
3/4"
1-1/4"
3.79
1.31
1.38

† With Bleeder Ball Check – Reduces hose whip when disconnecting.
All dimensions in inches.
