PT Coupling Clamping and Banding Tools

Description:

Loking - Banding - Mallet - Cutter - Clamping - Adapters - K52 Clamp Kit

Coupling Category

PUNCH-LOK® Clamping & Banding Tools

Manufacturer

PT Coupling

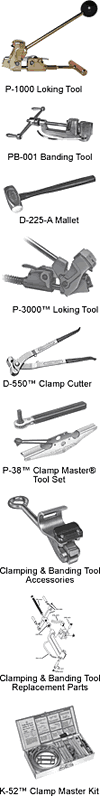

P-1000 Loking Tool For Punch Clamps



  • "The Punch-Lok™ Tool" the original. Made like no other tool! Designed for fast, economical application of punch-type clamps.
  • The portable P-1000 weighs only 2 1/2 pounds. Drop forged and double plated tempered steel construction.

Part Name Weight
P-1000 3.00 lb


PB-001 Banding Tool



  • Forged double plated tensioning tool with built in cutter for banding and buckle application. Also can be used with PJ-001 for J-Lok clamp installation.

Item # Item Name Part Name
P250012 PB-001 Banding Tool PB-001
P250011 PB-001H H.D. Banding Tool PB-001H


D-225-A Mallet



  • Specially designed for the punch-type clamps. Malleable iron head has softer striking surface for long tool life.
  • Made in the U.S.A.

Item # Part Name
P252250 D-225-A


P-3000™ Loking Tool



  • Similar to the Model P-1000, the Model P-3000 is designed for 3/8" wide punch-type clamp applications only. It will not fit 5/8" wide clamps. Double plated construction.
  • Loking Tool For 3/8" Punch Clamps Only.

Item # Part Name
P250004 P-3000


D-550™ Clamp Cutter



  • Powerful 14" cutter removes any punch type clamp with minimum effort. Rugged drop forged heat treated high-carbon steel construction. Double plated.

Item # Part Name
P255500 D-550


Clamping & Banding Tool Accessories




  • Clamp Adapter for PB-001
  • Converts PB-001 banding tool to apply J-Lok clamps.

PJ-001 Punch-Lok J-Lok Banding Tool Adapter
Item # Part Name
P250010 PJ-001


  • 3/8” Adapter for P-1000 Loking Tool
  • Fits under the pusher nose of P-1000 loking tool to apply 3/8" punch-type clamps.

3/8" Clamp Adapter
Item # Part Name
P252290 D-229


  • Bench Adapter for P-1000 and P-3000 Loking Tools
  • Converts P-1000 and P-3000 loking tools to bench tools to speed clamp application in tool room and hose assembly shop.
  • Made in the U.S.A.

D-300-A™ Bench Adapter
Item # Part Name
P253000 D-300-A


Clamping & Banding Tool Replacement Parts



P-1, P-3, P-1000 & P-3000 Replacement Parts
Item # Description Part Name
P252010 Punch Head D-201-A
P252020 Punch D-202
P252030 Set Screw D-203
P252040 Punch Head Pin (1-7/8" long) D-204
P252060 Pusher Nose D-206
P252070 Holding Dog D-207
P252080 Pusher Nose (15/16" long) D-208
P252090 Holding Dog Spring (long) D-209
P252110 Puller Link (need 2) D-211
P252111 Puller Link (need 2) - P-1000 only D-2119
P252120 Puller Link Pin (5/8" long) D-212
P252140 Pulling Dog D-214
P252142 Pulling Dog - P-1000 only D-2149
P252150 Pulling Dog Pin (1-11/32" long) D-215
P252160 Release Lever D-216
P252161 Release Lever - P-1000 only D-2169
P252170 Pulling Dog Spring (short) D-217
P252180 Release Lever Pin D-218
P252200 Ball Handle Assembly D-220-A
P252230 Washer for P-1000 D-223
P252240 Wrench D-224
P252250 Mallet D-225-A
P252260 Limit Ring D-226
P252280 Formed Washer D-228
P252290 3/8" Clamp Adapter D-229
P252312 Pusher - Puller Assembly (P-1000) D-231-A1
P252420 Retaining Rings (need 4) D-242


PB-001 Replacement Parts
Item # Description Part Name
P250067 Tension Handle (Parts 7, 8, & 9) PB-006
P252210 Spindle Rod PB-010
P252015 Cutter Blade PB-015
P252016 Ball Bearing PB-016
P252017 Cutter Blade Lever PB-017
P252220 Gripper PB-020
P252021 Gripper Pivot Pin PB-021
P252022 Cutter Blade Set Screw PB-022


P-38 Replacement Parts
Item # Description Part Name
P252850 Frame D-285-A
P252890 Punch and Holder D-289-A
P252980 Ratchet Wrench and Winder D-298-A


K-52™ Clamp Master Kit


  • Clamp-Master kit with high strength galvanized carbon punch-type steel clamps in steel case.
  • Made in the U.S.A.
Item # Description Part Name
P600052 Clamp-Master Kit, Galvanized Steel Clamp K-52
P600152 Clamp-Master Kit, Stainless Steel Clamp K-52S
P600520 Refill Clamps (Galv.) for K-52 Kit R-52
P605200 Refill Clamps (Stainless) for K-52-S Kit R-52S
