Texcel - SIGMA-POLY MHH™ / Polyurethane Food Grade Suction & Discharge Hose

SIGMA-POLY MHH™ /  Polyurethane Food Grade Suction & Discharge Hose

Vendor: Texcel

Category: Sanitary Food Grade    Sub Type: PVC Food Hose


Application:

Heavy-duty construction that complies with all applicable FDA requirements. Clear polyurethane and blue PVC helix construction allows for visual confirmation of material flow. Smooth bore construction eliminates material build up. Yarn reinforced for discharge applications. Heavy corrugation provides extra flexibility. Embedded wire prevents static electricity build up. Compare To 2020.

SAFETY NOTE: Grounding wire must be properly terminated at both ends in order to dissipate static electricity

Safety Factor:

3:1

Features:

FDA and USDA compliant, Phthalate Free

Tube:

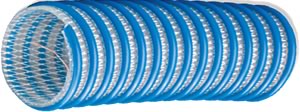

Clear, flexible polyurethane with a blue, tough vinyl right-handed helix; synthetic yarn reinforcement, embedded copper wire for grounding

Temperature:

-40˚F to +150˚F

Branding:

TEXCEL® SIGMA-POLY MHH™ - POLYURETHANE FOOD GRADE SUCTION / DISCHARGE HOSE --LOT

I.D. (in.) Part Number O.D. (in.) Std. Length (Ft.)  Working Pressure (psi) Vacuum (in./HG) Bend Radius (Lbs./Ft.) Weight (Lbs./Ft.) Request a Quote
3 SPVC-MHH-3.0 3.78 100 100 29 10 1.18 Request Quote
4 SPVC-MHH-4.0 4.85 100 75 29 12 1.58 Request Quote
5 SPVC-MHH-5.0 5.80 20/50/100 70 28 14 2.47 Request Quote
6 SPVC-MHH-6.0 6.93 20/50/100 70 28 14 2.86 Request Quote
