Continental ContiTech - Frac Hardwall Cut and Gouge Hose

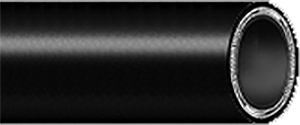

Frac Hardwall Cut and Gouge Hose

Vendor: Continental ContiTech

Category: Fracturing Hose


Application:

A rugged and flexible hose designed to convey crude oil and oil slurry mixtures for Frac tank connections. Cover is good for demanding cut and gouge applications.

Tube:

Black Nitrile

Reinforcement:

Spiral-plied fabrics + double helix wires

Cover:

Black Carboxilated Nitrile. Hose has a built-in yellow wear ply to illustrate wear condition and potential trigger point for product replacement.

Temperature:

-25˚F to 180˚F (-32˚C to 82˚C)

Branding:

Frac Hardwall CG 4" ID 400 PSI WP Made in Canada

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

543-443

ID Nom. OD Max WP Vacuum Rating Bend Radius Weight Request a Quote
in mm in mm psi MPa in Hg mmHg in mm lb/ft kg/m
4 101.6 4.93 125.3 400 2.76 29 736.6 24 609.6 4.13 6.15 Request Quote
