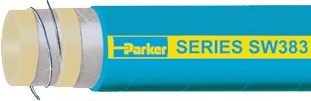

EXACT-CHEM Modified XLPE Chemical Hose - Series SW383

Types:
Chemical Hose     Sub Type: Chemical Transfer Hose

Vendor: Parker Industrial

Application:

EXACT-CHEM™ Modified XLPE Chemical Hose FDA, USDA, 3-A
Series SW383

• Non-fatty and non-oily foods and liquids, potable water, sanitary products
• Acid, chemicals, solvents
• In-plant and tank transfer, delivery, transport

Series SW383 is a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. The hose construction incorporates a modified cross-linked polyethylene (MXLPE) tube that features a temperature rating to 250°F (121°C), meets FDA, USDA and 3-A requirements, and will not leach into and contaminate the product being conveyed. The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.

NOTE: Contact JGB for additional chemical compatibility information.

Design Factor:  4:1
Vacuum:  Full
Industry Standards:  FDA, USDA, 3-A

Tube:

Tan modified cross-linked polyethylene (MXLPE)

Reinforcement:

Multiple textile plies with dual wire helix

Cover:

Blue EPDM; wrapped finish

Temperature:

-40°F to +250°F (-40°C to +121°C)

Packaging:

Coils

Branding:

PARKER SERIES SW383 EXACT-CHEM™ MOD X-LINK HOSE XXX PSI WP MADE IN USA

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Blue with yellow stripe

Part Number	ID	ID	Reinf Plies	OD	OD	Approx Wt	Min Bend Rad	Max Rec WP	Std Pack	Request Quote
	(in)	(mm)		(in)	(mm)	(lbs/ft)	(in)	(psi)	Qty (ft)
SW383-1000	1	25.4	2	1.5	38.1	0.56	6	200	100	Request Quote
SW383-1250	1-1/4	31.8	2	1.75	44.5	0.68	8	200	100	Request Quote
SW383-1500	1-1/2	38.1	2	2	50.8	0.77	9	200	100	Request Quote
SW383-2000	2	50.8	2	2.531	64.3	1.08	12	200	100	Request Quote
SW383-3000	3	76.2	2	3.656	92.9	2.02	18	150	100	Request Quote
SW383-4000	4	101.6	2	4.719	119.9	3.03	28	150	100	Request Quote
SW383-6000	6	152.4	2	6.813	173	5.9	42	150	100	Request Quote

WARNINGS! It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact JGB for chemical compatibility data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature. At operating temperatures of 125°F and above, only permanently attached couplings should be installed. At any operating temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
