Kanaflex

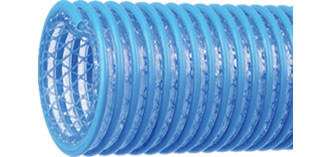

Kanaline Blue Hose

Types:
Suction & Discharge     Sub Type: Water Suction & Discharge Hose
Water Hose     Sub Type: Water Suction & Discharge Hose

Vendor: Kanaflex

Application:

Heavy-duty water suction and discharge hose for applications requiring combined vacuum, higher working pressures, and increased flexibility

Increased flexibility for use in colder environment applications, where more flexibility is desired, and liquid fertilizer

Tube:

Flexible cold weather PVC, smooth bore, corrugated O.D.

Reinforcement:

Rigid PVC helix, synthetic braiding

Temperature:

-40°F to 140°F

Features:

Lightweight and flexible. External helix provides for easy drag. Rated for both suction and discharge. Clear sidewall permits visual check of material flow.

Note:

Banding coil must be used for all sizes.
* Over flexing or repeated flexing of hose within 18" of fitting is a common cause of hose failure. Installing a 12"-14" section of our Banding Coil at the end of the hose should be considered. Kanaflex will not be responsible for damage to hose due to over flexing.

ID	OD	Pitch	Minimum Bend Radius	Working Pressure	Vacuum Rating	Weight	Standard Length	Request a Quote
Inches	Inches	Inches	72°F, Inches	72°F, P.S.I.	72°F, In Hg	Lbs/Ft	Ft
1-1/2	2.10	0.37	2.0	75	28.0	0.47	60,100	Request Quote
2	2.60	0.43	3.0	70	28.0	0.70	60,100	Request Quote
3	3.70	0.59	5.0	70	28.0	1.13	60,100	Request Quote
4	4.80	0.63	7.0	60	28.0	1.74	60,100	Request Quote
6	7.30	0.98	9.0	50	28.0	3.88	60,100	Request Quote
8	9.50	1.07	15.0	40	28.0	5.54	15,20,25	Request Quote
10	11.63	1.22	24.5	30	28.0	8.68	20,25,40	Request Quote
