Kanaflex

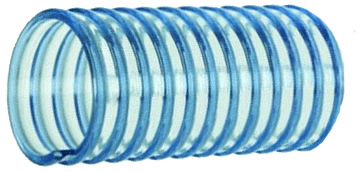

Kanaflex Kanalite 200 SFG
Types:
Sanitary Food Grade
Sub Type:
General Food Hose
Vendor: Kanaflex
Application:
Food grade suction hose for use in:- canning
- dairy
- bottling
Produced entirely of compounds in compliance with FDA and 3-A nontoxic specifications.
Tube:
Flexible PVC, smooth bore
Reinforcement:
Rigid PVC helix
Cover:
Corrugated O.D.
Temperature:
-13°F To 140°F
| Inside Dia. | Outside Dia. | Pitch | Min Bend Radius |
Working Pressure 72°F |
Vacuum | Weight | Standard Length | Request a Quote |
| in. | in. | in. | in. | psi | In. Hg | Lb/Ft | Ft | |
| 1 | 1.25 | .30 | 1.5 | 50 | 29.8 | .18 | 100 | Request Quote |
| 1-1/4 | 1.52 | .33 | 2.0 | 45 | 29.8 | .22 | 100 | Request Quote |
| 1-1/2 | 1.81 | .35 | 2.5 | 45 | 29.8 | .35 | 100 | Request Quote |
| 2 | 2.36 | .39 | 4.0 | 40 | 29.8 | .50 | 100 | Request Quote |
| 2-1/2 | 2.87 | .56 | 4.5 | 35 | 29.8 | .68 | 100 | Request Quote |
| 3 | 3.50 | .59 | 6.0 | 35 | 29.8 | 1.00 | 100 | Request Quote |
| 4 | 4.63 | .65 | 8.0 | 30 | 29.8 | 1.52 | 100 | Request Quote |
| Metric | ||||||||
| 45 | 2.13 | .39 | 4.0 | 37 | 29.8 | .45 | 100 | Request Quote |
| 57 | 2.60 | .43 | 4.5 | 35 | 29.8 | .60 | 100 | Request Quote |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
