Kuriyama

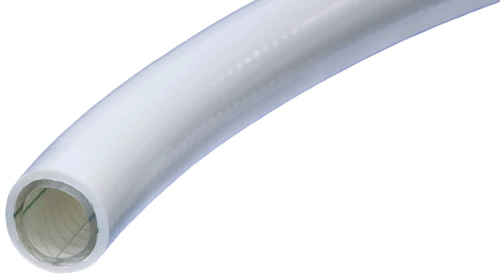

Kuri Tec K6155 Series High Purity PVC Potable Water Hose
Types:
Suction & Discharge
Sub Type:
Water Suction & Discharge Hose
Water Hose
Sub Type:
Water Suction & Discharge Hose
Vendor: Kuriyama
Application:
A High Purity non-conductive NSF Certified, Phthalate Free hose with colored jacket which is ideal for potable water and deionized water transfer.- Transfer of potable water.
- Transfer of deionized water.
- Induction welding tubing lines.
- Temporary residential water supply lines.
- Water transfer lines for semiconductor manufacturing,where applicable.
- Applications requiring a non-conductive hose.
Features:
Tube:
Clear Phthalate Free PVC compound, formulated in compliance with FD(03) and NSF(12) criteria.
Reinforcement:
High tensile strength yarn
Cover:
Phthalate Free PVC compound
Temperature:
+25°F (-4°C) to 150°F (65°C)
Packaging:
Coils
Category:
Kuri Tec®
Colors:
K6155 - White
Options:
Additional non-toxic colors (Red, Black, Blue, Green, Yellow and Purple) are available on a special order basis.
| Item # | Nominal I.D. | Nominal O.D. | Max. Working Pressure at 70ºF (20ºC) |
Max. Working Pressure at 122ºF (50ºC) |
Standard Length | Approx. Weight |
Color | Request Quote | ||
| (in/mm) | (in/mm) | PSI | PSI | (ft.) | (lbs.) | |||||
| K6155-08X300 | 0.500 | 12.70 | 0.750 | 19.1 | 200 | 100 | 300 | 40.0 | White | Request Quote |
| K6155-12X200 | 0.750 | 19.00 | 1.031 | 26.2 | 150 | 85 | 200 | 43.0 | White | Request Quote |
| K6155-16X200 | 1.000 | 25.40 | 1.300 | 33.0 | 125 | 75 | 200 | 59.0 | White | Request Quote |
† NOTE: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of
compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
FDA(03), NSF(12), Phthalate Free(15), Rohs(16)
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
