Kuriyama

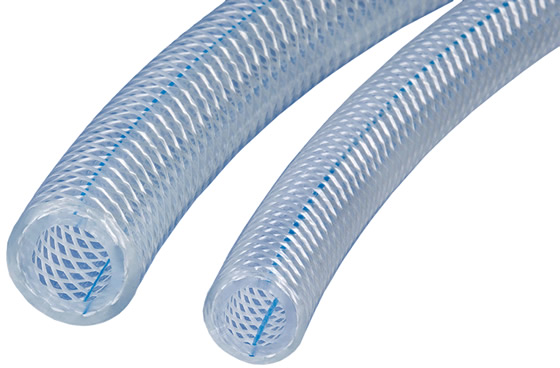

CLEARBRAID K3130 / Series BF Heavy Wall PVC Food & Beverage Hose

Types:
Suction & Discharge Sub Type: Water Suction & Discharge Hose
Water Hose Sub Type: Water Suction & Discharge Hose

Vendor: Kuriyama

Application:

A heavier walled crystal clear Phthalate Free yarn reinforced hose suitable for a wide variety of food and beverage applications.

Food and beverage dispensing
Deionized water
Liquid food products
Air and water lines
Powdered food products
Potable water transfer
Air breathing lines
Pneumatic lines
Packaging machines

Features:

Constructed with Phthalate Free compounds.
NSF-51 certified material.
Crystal clear — allows visual confirmation of product flow
Longitudinally-reinforced to reduce elongation under pressure.
Light weight
Self-extinguishing
Non-marking
Silicone-free
One-piece lengths
Resistant to chemicals
Compound hardness 73 ±3 Shore “A”
Phthalate Free!

Tube:

Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA⁽⁰³⁾ requirements, meets USDA⁽¹⁸⁾, 3A⁽⁰¹⁾, NSF⁽¹³⁾, UL⁽¹⁷⁾, RoHS⁽¹⁶⁾ and USP⁽¹⁹⁾ Class VI criteria.

Reinforcement:

Reinforced with spiraled polyester yarn and longitudinal blue tracer yarns for identification.

Temperature:

25 to 150 ºF
-4 to 65 ºC

Packaging:

cut lengths/full coils

Category:

Kuri Tec®

Item #	Nominal I.D.		Nominal O.D.		Max.Working Pressure		Standard Length	Approx. Weight	Request Quote
	(in.)	(mm)	(in.)	(mm)	at 70ºF (20ºC)	at 122ºF (50ºC)	(ft.)	(lbs)
	(in.)	(mm)	(in.)	(mm)	PSI	PSI	(ft.)	(lbs)
K3130-02X100	0.130	3.20	0.330	80.3	350	200	100	4.00	Request Quote
K3130-02X300	0.130	3.20	0.330	80.3	350	200	300	12.0	Request Quote
K3130-03X100	0.190	4.8	0.400	100.3	350	200	100	6.00	Request Quote
K3130-03X300	0.190	4.8	0.400	100.3	350	200	300	17.0	Request Quote
K3130-04X100	0.250	6.35	0.500	120.7	350	200	100	8.00	Request Quote
K3130-04X300	0.250	6.35	0.500	120.7	350	200	300	24.0	Request Quote
K3130-05X100	0.310	7.90	0.560	140.3	275	160	100	9.00	Request Quote
K3130-05X300	0.310	7.90	0.560	140.3	275	160	300	28.00	Request Quote
K3130-06X100	0.380	9.50	0.620	150.9	275	145	100	11.0	Request Quote
K3130-06X300	0.380	9.50	0.620	150.9	275	145	300	32.0	Request Quote
K3130-08X100	0.500	12.70	0.810	200.7	250	130	100	17.0	Request Quote
K3130-08X300	0.500	12.70	0.810	200.7	250	130	300	52.0	Request Quote
K3130-10X100	0.630	15.90	1.000	25.4	225	125	100	26.0	Request Quote
K3130-10X200	0.630	15.90	1.000	25.4	225	125	200	52.0	Request Quote
K3130-12X100	0.750	19.00	1.120	28.6	200	120	100	30.0	Request Quote
K3130-12X200	0.750	19.00	1.120	28.6	200	120	200	60.0	Request Quote
K3130-16X100	1.000	25.40	1.380	34.9	150	85	100	38.00	Request Quote
K3130-16X200	1.000	25.40	1.380	34.9	150	85	200	76.0	Request Quote
K3130-20X50	1.250	31.80	1.750	44.5	125	75	50	32.0	Request Quote
K3130-20X100	1.250	31.80	1.750	44.5	125	75	100	64.0	Request Quote
K3130-24X50	1.500	38.10	2.000	50.8	100	65	50	38.00	Request Quote
K3130-24X100	1.500	38.10	2.000	50.8	100	65	100	75.0	Request Quote
K3130-32X50	2.000	50.80	2.500	63.5	75	55	50	48.0	Request Quote
K3130-32X100	2.000	50.80	2.500	63.5	75	55	100	96.0	Request Quote

† NOTE: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.

CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.

3A⁽⁰¹⁾, FDA⁽⁰³⁾, NSF⁽¹³⁾, Phthalate Free⁽¹⁵⁾, RoHS⁽¹⁶⁾, UL⁽¹⁷⁾, USDA⁽¹⁸⁾, USP⁽¹⁹⁾
