Kuriyama
Kuri Tec K1171, K1173, K1174, K1176 Series General Service PVC Air & Water Hose

Types:
Air and Multipurpose Hose

Vendor: Kuriyama

Application:

A general service PVC air and water hose for indoor or outdoor applications requiring a lightweight hose that can operate at lower temperatures.

• Transfer of air, water and mild water soluble chemicals.
• Ideal for in-plant and outdoor applications that require an economical general purpose hose.
• Excellent air supply line for pneumatic tools and paint spray systems.

Features:

• Economical, lightweight, low temperature native to rubber hose.
• Excellent abrasion resistance.
• U. V. and weather resistant.
• Non-marking pin-pricked cover.
• Complies with RMA’s Class B designation for medium/high oil resistance.
• One piece lengths.
• Formulated for low temperature flexibility.
• Phthalate Free!

Tube:

Black PVC compound

Reinforcement:

High tensile strength yarn

Cover:

PVC compound

Temperature:

-15°F (-26°C) to +150°F (+65°C)

Category:

Kuri Tec

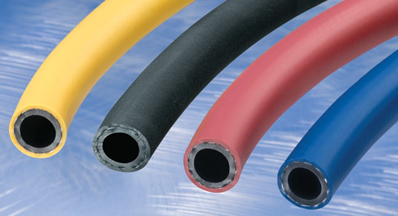

Colors:

Yellow: K1171
Black: K1173
Red: K1174
Blue: K1176

Item #	Standard Stock Color	Size Code	Nominal ID	Nominal OD	†Maximum Working Pressure at 70 ºF (20 ºC)	†Maximum Working Pressure at 122 ºF (50 ºC)	Standard Length Coils/Reels	Approx. Wt. Per Pkg.	Request a Quote
K1171-04X500	Yellow	4	1/4 in	0.475 in	300 psi	150 psi	500 ft	36.0 lb	Request Quote
K1171-06X500	Yellow	6	3/8 in	0.600 in	300 psi	150 psi	500 ft	48.0 lb	Request Quote
K1171-08X300	Yellow	8	1/2 in	0.750 in	300 psi	150 psi	300 ft	42 lb	Request Quote
K1173-04X500	Black	4	1/4 in	0.475 in	300 psi	150 psi	500 ft	36.0 lb	Request Quote
K1173-06X500	Black	6	3/8 in	0.600 in	300 psi	150 psi	500 ft	48.0 lb	Request Quote
K1173-08X500	Black	8	1/2 in	0.750 in	300 psi	150 psi	300 ft	42 lb	Request Quote
K1174-04X500	Red	4	1/4 in	0.475 in	300 psi	150 psi	500 ft	36.0 lb	Request Quote
K1174-06X500	Red	6	3/8 in	0.600 in	300 psi	150 psi	500 ft	48.0 lb	Request Quote
K1174-08X300	Red	8	1/2 in	0.750 in	300 psi	150 psi	300 ft	42 lb	Request Quote
K1174-10X300	Red	10	5/8 in	0.860 in	250 psi	125 psi	300 ft	46.0 lb	Request Quote
K1176-04X500	Blue	4	1/4 in	0.475 in	300 psi	150 psi	500 ft	36.0 lb	Request Quote
K1176-06X500	Blue	6	3/8 in	0.600 in	300 psi	150 psi	500 ft	48.0 lb	Request Quote
K1176-08X300	Blue	8	1/2 in	0.750 in	300 psi	150 psi	300 ft	42 lb	Request Quote

Phthalate Free⁽¹⁵⁾
