Kuriyama

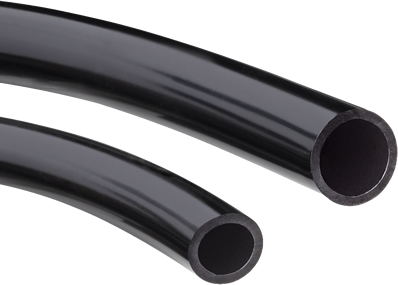

Kuri Tec K05BK Series UV Resistant Black PVC Tubing

Types:
Tubing

Vendor: Kuriyama

Application:

Kuri Tec® K05BK Series UV Resistant Black PVC Tubing is specially formulated to resist the cracking that can result from exposure to damaging UV light. Tubing complies with applicable FDA requirements. Has a glass-smooth interior which reduces the possibility of material buildup and ensures smooth material flow. General applications include drainage lines, outdoor applications, printing press equipment and transfer of weak chemicals and acids.

Drainage lines
Outdoor applications
Printing press equipment
Transfer of weak chemicals and acids

FEATURES & Advantages:

Advanced UV Protection! – Tubing material is specially formulated to resist the cracking that can result for exposure to damaging UV light. Great for outdoor applications.
Food Grade Materials – Tubing complies with applicable FDA requirements.
Glass-smooth Interior – Reduces possibility of material buildup and ensures smooth material flow.
Self-Extinguishing – Tubing will not continue to burn after separation from flame source.
Phthalate Free

Tube:

Black phthalate free PVC compound formulated with ingredients in compliance with applicable FDA⁽⁰³⁾ and RoHS ⁽¹⁶⁾ requirements.

Temperature:

+25°F (-4°C) to +150°F (+65°C)†

Category:

Kuri Tec

Series	Size Code	Nominal ID		Nominal OD		Nominal Wall		Working Pressure at 70°F (20°C)	Standard Length Coils	Approx. Wt. Per Pkg.	Request a Quote
K05BK-0406X100	406	1/4 in	6.4 mm	3/8 in	9.5 mm	1/16 in	1.6 mm	55 psi	100 ft	3.4 lb	Request Quote
K05BK-0608X100	608	3/8 in	9.5 mm	1/2 in	12.7 mm	1/16 in	1.6 mm	45 psi	100 ft	4.7 lb	Request Quote
K05BK-0810X100	810	1/2 in	12.7 mm	5/8 in	15.9 mm	1/16 in	1.6 mm	30 psi	100 ft	6.0 lb	Request Quote
K05BK-1216X100	1216	3/4 in	19.1 mm	1 in	25.4 mm	1/8 in	3.2 mm	35 psi	100 ft	18.8 lb	Request Quote
K05BK-1620X100	1620	1 in	25.4 mm	1 1/4 in	31.8 mm	1/8 in	3.2 mm	25 psi	100 ft	24.1 lb	Request Quote
K05BK-2024X50	2024	1 1/4 in	31.8 mm	1 1/2 in	38.1 mm	1/8 in	3.2 mm	20 psi	50 ft	14.8 lb	Request Quote
K05BK-2432X50	2432	1 1/2 in	38.1 mm	2 in	50.8 mm	1/8 in	3.2 mm	35 psi	50 ft	37.5 lb	Request Quote
