Kuriyama

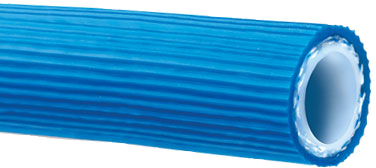

Kuri Tec ICE BLASTER K5556 Series Polyurethane Lined Dry Ice Transfer Hose

Types:
Tubing

Vendor: Kuriyama

Application:

Kuri Tec® K5556 Series Polyurethane Lined Dry Ice Transfer Hose is designed for use with dry ice blasting equipment and the transfer of low temperature materials. Constructed with low temperature flexible PVC with abrasion resistant polyurethane liner and reinforced with two layers of high tensile strength yarn. The non-marking easy-slide ribbed cover reduces friction between the hose and ground, allowing the hose to slide easily over rough surfaces.

Dry ice blasting equipment
Transfer of low temperature materials

FEATURES & Advantages:

Lighter Weight – Up to 25% lighter than similar rubber hoses. Easier to use and helps to reduce worker fatigue.
Abrasion Resistant Polyurethane Liner – Designed for applications where abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or all-PVC hoses.
Smooth Interior – Low friction inner surface allows for maximum flow.
Cold Flex™ Materials – Hose remains flexible in sub-zero temperatures.
Easy Slide Cover – Ribbed cover reduces friction between the hose and ground, allowing the hose to slide easily over rough surfaces.
Non-marking – PVC cover eliminates instances of floor marking that can be caused by some rubber hoses.
One Piece Lengths – Available in up to 300 foot lengths, eliminating the need for hose menders.
Phthalate Free

Tube:

Low temperature flexible PVC with abrasion resistant polyurethane liner.

Reinforcement:

Two layers of high tensile strength yarn.

Cover:

Low temperature flexible PVC

Temperature:

-40°F (-40°C) to +140°F (+60°C) Actual service temperature range is application dependent. Working pressure decreases as temperature increases.

Category:

Kuri Tec

Series	Size Code	Nominal ID		Nominal OD		Working Pressure (PSI) at 70°F (20°C)	Standard Length Coils (ft.)	Approx. Wt. per Pkg. (lbs.)	Request a Quote
		(in)	(mm)	(in)	(mm)
K5556	8	1/2	12.7	0.815	20.7	300	100/300	15/45	Request Quote
K5556	12	3/4	19.3	1.22	31	300	100/300	33/100	Request Quote
K5556	16	1	25.4	1.48	37.6	300	100/300	45/134	Request Quote
K5556	20	1 1/4	31.8	1.81	46	300	50/100	33/66	Request Quote

NOTE: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fitting with Kuri Tec® reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.

† CAUTION: Consult Kuri Tec® PVC chemical resistance guide for suitability.
