Kuriyama

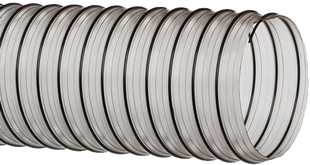

Flexair Urevent™ HD Heavy Duty Clear UREH-CL™ Series

Types:
Ducting
Material Handling Hose Sub Type: Material Handling Abrasives and Corrosives hose

Vendor: Kuriyama

Application:

Heavy Duty, Food Grade Polyurethane Ducting/Material Handling Hose

Concrete resurfacing dust collection
Ducting, ventilation & fume removal
Dust control
Food grade material handling
Pharmaceutical product transfer
Material handling – standard duty
Woodworking, furniture dust & chip control

FEATURES & Advantages:

Durable & Lightweight Polyurethane Material – Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
Steel Wire Helix – Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
Food Grade Material – Hose complies with applicable FDA requirements.
Transparent Construction – “See-the-flow”. Allows for visual confirmation of material flow.
“Cold-Flex” Material – Hose remains flexible in sub-zero temperatures.
Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.
Pthalate Free.

Tube:

0.040" thick ether polyurethane (TPU) hose with steel wire helix

Temperature:

-65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)*
*Actual service temperature range is application dependent

Lengths:

25 ft./ctn

Category:

Flexair

Options:

50 Ft. lengths are available on special request. Contact JGB customer service for pricing and lead time.

Series Number	ID		OD		Working Pressure	Vacuum Rating	Min. Bending Radius	Compression Ratio	Weight	Request a Quote
Series Number	(in)	(mm)	(in)	(mm)	(psi) 68°F	(in Hg) 68°F	(in) 68°F	Compression Ratio	(lbs/ft)	Request a Quote
UREH-CL400	4	101.6	4.32	109.73	33	25	4	2:1	0.73	Request Quote
UREH-CL500	5	127	5.32	135.13	31	22	5	2:1	0.84	Request Quote
UREH-CL600	6	152.4	6.37	161.8	29	21	6	2:1	1.2	Request Quote
UREH-CL800	8	203.2	8.37	212.6	22	16	7.5	2:1	1.67	Request Quote
UREH-CL1000	10	255	10.37	263.4	21	9	9	2:1	2.03	Request Quote
UREH-CL1200	12	304.8	12.23	310.64	16	7	10	2:1	2.47	Request Quote

* NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
