Kuriyama

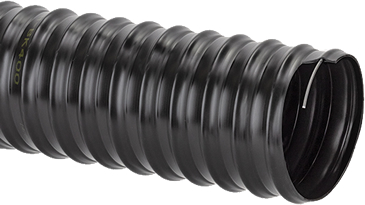

Flexair Urevent HD Heavy Duty Black UREH-BK™ Series
Types:
Ducting
Material Handling Hose
Sub Type:
Material Handling Abrasives and Corrosives hose
Vendor: Kuriyama
Application:
Heavy Duty Polyurethane Ducting/ Material Handling Hose- Concrete resurfacing dust collection
- Ducting, ventilation & fume removal
- Dust control
- Material handling – standard duty
- Woodworking, furniture dust & chip control
FEATURES & Advantages:
- Durable & Lightweight Polyurethane Material – Designed for wet or dry applications where abrasion is a factor. Provides longer hose life and lower operating costs versus similar rubber or PVC hoses.
- Steel Wire Helix – Provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
- “Cold-Flex” Material – Hose remains flexible in sub-zero temperatures.
- Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.
- Pthalate Free.
Tube:
0.040" thick ether polyurethane (TPU) hose with steel wire helix
Temperature:
-65°F (-54°C) to +225°F (+107°C); intermittent service to +250°F (+121°C)*
*Actual service temperature range is application dependent
Lengths:
25 ft./ctn
Category:
Flexair
Options:
50 Ft. lengths are available on special request. Contact JGB customer service for pricing and lead time.
| Series Number | ID | OD | Working Pressure | Vacuum Rating | Min. Bending Radius | Compression Ratio | Weight | Request a Quote | ||
| (in) | (mm) | (in) | (mm) | (psi) 68°F | (in Hg) 68°F |
(in) 68°F | (lbs/ft) | |||
| UREH-BK400 | 4 | 101.6 | 4.32 | 109.73 | 33 | 25 | 4 | 2:1 | 0.73 | Request Quote |
| UREH-BK500 | 5 | 127.0 | 5.32 | 135.13 | 31 | 22 | 5 | 2:1 | 0.84 | Request Quote |
| UREH-BK600 | 6 | 152.4 | 6.37 | 161.80 | 29 | 21 | 6 | 2:1 | 1.20 | Request Quote |
| UREH-BK800 | 8 | 203.2 | 8.37 | 212.60 | 22 | 16 | 7.5 | 2:1 | 1.67 | Request Quote |
| UREH-BK1000 | 10 | 255.0 | 10.37 | 263.40 | 21 | 9 | 9 | 2:1 | 2.03 | Request Quote |
| UREH-BK1200 | 12 | 304.8 | 12.23 | 310.64 | 16 | 7 | 10 | 2:1 | 2.47 | Request Quote |
* NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
BSE/TSE(02), Phthalate Free(05), RoHS(06)
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
