Kuriyama

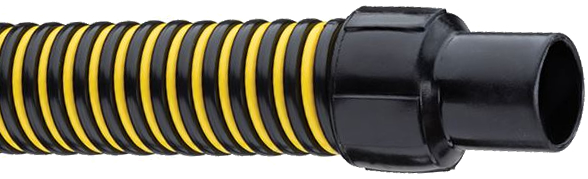

King Bee KBEE™ Series Polyethylene Liquid Suction and Wastewater Hose

Types:
Suction & Discharge     Sub Type: Water Suction & Discharge Hose

Vendor: Kuriyama

Application:

• Pumps, rental and construction dewatering
• Pumps, trash
• Septic and wastewater handling
• Water suction – standard duty

Features and Advantages:

• Superior Flexibility! – Corrugated tube and ribs provides high flexibility, perfect for maneuvering in tight areas such as portable toilets.
• “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
• Crush Resistant – Will spring back to original shape after being crushed, will not kink!
• Easy Slide Helix – Exposed ribs protect hose tube from cover wear, and allow hose to slide easily over rough surfaces. Easy-to-handle.
• Leak Proof Cuffs – Overmolded cuffs eliminate leaking and will not separate from the hose. Each cuff and unit is 100% factory tested.
• Additional 2" Cuffs – Additional 2" cuffs are available for making hose repairs and custom lengths.

Part Number	ID (in)	Weight (lbs)
CUFF2	2	0.2

Tube:

Flexible polyethylene (LDPE) tube with polyethylene (LDPE) ribs and cuffed ends.

Temperature:

-40°F (-40°C) to +150°F (+65°C)
Actual service temperature range is application-dependent.

Series Number	ID		OD		Working	Vacuum Rating Hg at	Min. Bending Radius	Standard Length (ft)	Weight	Request Quote
	(in)	(mm)	(in)	(mm)	Pressure	68°F (in)	in	(ft)	(lbs/ft)
KBEE200	2	52.7	2.76	69.5	15	29	3.5	60/50/40/30/25/20/10	0.72	Request Quote
KBEE300	3	76.0	4.06	97.0	7	29	6.5	60/50/30/25/20	1.36	Request Quote

KBEE™ Series Polyethylene Hose Guard

APPLICATIONS:

Protection of high pressure sewer jetting hoses

CONSTRUCTION:

FEATURES & ADVANTAGES:

• Easy Slide Interior – low coefficient of friction polyethylene tube allows for sewer jetting hoses to slide through easily, protecting them from wear.
• "Cold–Flex" Materials – Remains flexible in sub–zero temperatures.
• Crush Resistant – Will spring back to original shape after being crushed, will not kink!
• Easy Slide Helix – Exposed ribs protect tube from cover wear, and allow hose to slide easily over rough surfaces. Easy–to–handle.
• Leak Proof Cuffs – Overmolded cuffs will not separate from the hose guard. Each cuff and unit is 100% factory tested.

Part Number	ID		OD		Working Pressure at 68°F	Vacuum Rating Hg at 68°F	Min. Bending Radius at 68°F	Standard Length	Weight
	(in)	(mm)	(in)	(mm)	(psi)	(in)	(in)	(ft)	(lbs/ft)
KBEE2X3	2	50.8	2.76	70.1	15	29	3.5	3	2.55
KBEE3X3	3	76.2	4.06	103.1	7	29	6.5	3	4.8

King Bee™ Collar Clamp with 20' Rope

Part Number	ID (in)	Weight (lbs)
KBC300	3	0.67
