Kuriyama

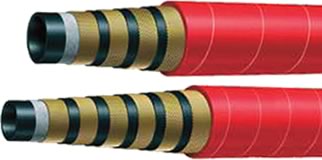

Hiflex Firesafe 5000 Hose

Types:
Hydraulic Hose

Vendor: Kuriyama

Application:

• Defense Installations - for strategic hydraulic services.
• Off-Shore - Blow-out Preventor valves.
• Industrial - Steel mills, foundries, forging shops and others volatile environments.
• Mining - Fiery mines and areas with low flash point ignition risk.
• Marine - Tanker pump rooms and ring main systems.
• Refineries - Critical plant control systems.
• Hydraulic systems - with petroleum or water/glycol based fluids and for fuel and lubricating oils.

SAFETY COMES FIRST!

The Dunlop Hiflex Firesafe 5000 hose offers an effective solution in applications that rely on hydraulically powered emergency systems. These systems are often required to function for a period of time in order to close off fire prevention barriers and valve gear or to maintain other critical services.

Safety Factor: 4:1

Features & Advantages:

• Resistance, safety and reliability.
• Firesafe hose is designed for use in areas where the continuation of the hydraulic function during emergency fire situations is vital in order to shut down plant and machinery or to keep the fire fighting system operational.
• Widely used in Blow-out Preventor Systems.
• Available from 1/4” to 2”, Firesafe 5000 is designed to cater for a variety of applications.
• As with all safety critical products, the key to the Firesafe hose is reliability.
• Dunlop Hiflex Firesafe 5000 has been tested according to API 16-D.

Available Assembly Accessories:
NOTE – Please contact JGB for Assembly Instructions.

• Fiberglass Wrap – Part Number FSFT-24-1/8X100 For extra insulation over crimped hose end
• Over Ferrules (Part numbers in last column of table below) To be crimped over fiberglass wrapped hose end to secure and provide extra protection
• High Temp Caulk FSPLT-310MLTUBE To seal any exposed areas after wrap and over-ferrule are applied

Max. Working Pressure

5000 psi

Tube:

Black; oil resistant synthetic rubber

Reinforcement:

Four/six high tensile steel spirals

Cover:

Red oil & fire resistant synthetic rubber

Temperature:

Constant operation -40°F (-40°C) to 250°F (+121°C)

Lengths:

Contact JGB for sizes -04 through -16; all larger sizes 100 ft.

Colors:

Red

Series Number	Size Code	Nominal ID		Nominal OD		Min. Bend. Radius		Approx. Weight	Coupling Recommendations	Accessory	Request Quote
		(In)	(mm)	(In)	(mm)	(In)	(mm)	(lbs/100ft)	Ferrules (Two Piece)	Over Ferrule
FS5000-04	04	1/4	6	1.02	26,0	5.91	150	47	H1100404-04	FS0F-04	Request Quote
FS50G0-06	06	3/8	10	1.13	28,7	7.09	180	53	H1100404-06	FS0F-06	Request Quote
FS5000-08	08	1/2	12	1.25	31.8	9.06	230	86	H1100404-08	FS0F-08	Request Quote
FS5000-12	12	3/4	20	1.56	39.6	11.81	300	124	H1100404-12	FS0F-12	Request Quote
FS5000-16	16	1	25	1.85	47.0	13.39	340	180	H1400200-16	FS0F-16	Request Quote
FS5000-20	20	1 1/4	32	2.12	53.8	18.11	460	224	H1400200-20	FS0F-20	Request Quote
FS5000-24	24	1 1/2	38	2.59	65.8	22.05	560	394	H1400301-24	FS0F-24	Request Quote
FS5000-32	32	2	51	3.13	79.4	27.56	700	522	H1400301-32	FS0F-32	Request Quote
