Kuriyama

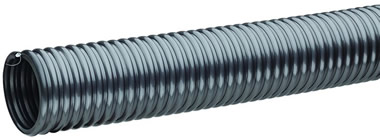

Tigerflex Silver Tiger - STIG Series Extremely Heavy Duty Polyurethane Lined Material Handling Hose
Types:
Material Handling Hose
Sub Type:
Material Handling Abrasives and Corrosives hose
Material Handling Bulk Transfer Hose
Vendor: Kuriyama
Application:
- Fly ash collection
- Industrial Vacuum Equipment
- Material chutes
- Material handling – heavy duty abrasive
- Milling machine scrap recovery
- Rock, gravel, sand and crushed concrete vacuuming
- Shot blast recovery
Temperature:
-4ºF to 150ºF (-20ºC to 65ºC)*
*Actual service temperature range is application dependent.
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
Construction:
PVC cover with extra thick polyurethane liner, rigid PVC helix and grounding wire.
Features and Advantages:
- Extra Thick Abrasion Resistant Polyurethane Liner – Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
- Grounding Wire – Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It’s embedded within the rigid helix to prevent contamination of transferred materials.
- Convoluted Outer Cover – Provides increased hose flexibility.
- Oil Resistant Polyurethane Liner – Resists most animal and petroleum based oils.
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
The Most Internal Abrasion Resistant Hose!
| Series Number | ID | OD | Working Pressure (psi) | Vacuum Rating Hg (in) | Min. Bending Radius at 68°F (in) |
Standard Length (ft) |
Weight (lbs/ft) | Request a Quote | ||||
| (in) | (mm) | (in) | (mm) | 68°F | 104°F | 68°F | 104°F | |||||
| STIG250 | 2-1/2 | 63.5 | 3.04 | 77.2 | 45 | 22 | Full | 28 | 7 | 100 | 0.92 | Request Quote |
| STIG300 | 3 | 76.2 | 3.77 | 95.8 | 45 | 22 | Full | 28 | 8 | 100 | 1.5 | Request Quote |
| STIG400 | 4 | 101.6 | 4.86 | 123.5 | 40 | 20 | Full | 28 | 12 | 100/20 | 2.32 | Request Quote |
| STIG500 | 5 | 127 | 5.86 | 148.8 | 35 | 18 | Full | 28 | 16 | 60/20 | 3.43 | Request Quote |
| STIG600 | 6 | 153.4 | 7.18 | 182.4 | 35 | 18 | Full | 28 | 20 | 100/50/20 | 4.54 | Request Quote |
| STIG800 | 8 | 204.8 | 9.49 | 241 | 35 | 18 | 28 | 25 | 25 | 50/20 | 7.53 | Request Quote |
 |
