Nycoil

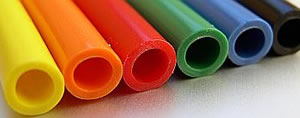

Polyethylene Fractional Inch Tubing

Types:
Tubing

Vendor: Nycoil

Application:

Polyethylene Applications

Potable Water Feed/Drains
Pneumatic or Signal Lines
Liquid/Air Transfer

Typical Applications

Low Pressure Pneumatics

Polyethylene Property Overview

Flexible
Chemically Inert
UV Resistant (Black tube)

Polyethylene is the most commonly used tubing due to its flexibility, wide range of chemical resistance and lower cost.

LLDPE has a much higher resistance to stress cracking as compared to other Polyethylene compounds. It is also chemically inert, meaning it forms a good barrier against moisture, vapors and gases – minimizing the possibility of leaks or contamination. Where prolonged exposure to sunlight or ultraviolet (UV) light is a concern, black tubing is recommended for extended life.

Color Code Suffix Key

0 = Natural
1 = Black
2 = Red
3 = Blue
4 = Green
5 = Yellow
6 = Orange
7 = Gray

Tube:

Polyethylene

Temperature:

-100°F to +175°F (-73°C to +80°C)

Packaging:

Reels

Category:

Pneumatic Tubing - Polyethylene

Options:

Custom sizes, cut lengths, reel lengths and colors are available upon request - contact JGB Customer Service.

Tube	Tube	Wall	Part Number			Min. Bend	Weight (lbs)	Working Pressure PSI		Burst Pressure PSI	Request a Quote
O.D.	I.D.	Thickness	100	500	1000	Radius	Weight (lbs)	Working Pressure PSI		Burst Pressure PSI
inch	inch	inch	Reel	Reel	Reel	inch	1000	68°F	125°F	68°F
1/4	.170	.040	6244_	6444_	6644_	3/4	1.9	167	107	500	Request Quote
5/16	.190	.062	6255_	6455_	6655_	5/8	2.2	200	128	600	Request Quote
3/8	.250	.062	6266_	6466_	6666_	1-1/8	25.3	167	107	500	Request Quote
1/2	.375	.062	6288_	6988_*	6688_	2-1/8	35.5	133	85	400	Request Quote
