Nycoil
95A Polyurethane EZ-Strip Mini Coils

Types:
Tubing

Vendor: Nycoil

Application:

Nycoil offers Bonded Tubing in Polyurethane and Nylon. Due to the differences in the properties of these two materials, each is bonded in a different manner. Polyurethane uses our EZ-Strip™ process, which is a continuous bond along the entire length of the tubes. Bonded Polyurethane is easily separated, meaning the tubes can be pulled apart without compromising their dimensional integrity. Maintaining perfect "roundness" is essential for a secure and leak free fitting connection. EZ-Strip™ is also available as Mini Coils.

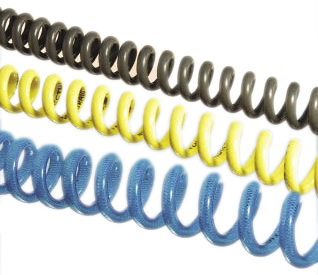

The tight diameter of our Mini-Coils make them extremely flexible and ideal for use with robotics, instrumentation, small pneumatic tools, control circuits or any other application requiring either constant or intermittent motion. They include a pigtail on each end for easy fitting installation or connection to other devices. A variety of colors is offered for coding purposes or to be aesthetically compatible with other equipment.

Typical Applications

• Water & Pneumatic Lines
• Spot Welders
• Machines
• Tools
• Pneumatic Plumbing
• Pick & Place Automation

Specifications

• Extreme Flexibility
• Reduced Bend Radius
• Moisture Resistant
• Abrasion Resistant

Features

• Saves Time & Money Quick Installation: Running a single strip of bonded tubing is much faster than running multiple tubes individually
• Allows Compact Circuit Space Economy: Bonded tubes provide a more precise and consistent dimension than bundles, wraps or channels
• Reduces Errors Visible Traceability: Color-coded bonded tubes make routing a circuit less complicated and easier to follow
• Enhances Appearance of the Circuit & Equipment Eliminates Clutter: Bonded tubing will eliminate tangled and sloppy tubing runs

Tube:

Polyurethane or Nylon

Temperature:

-40°F to +165°F (-40°C to +75°C)

Category:

Pneumatic Tubing - Polyurethane

Options:

Polyurethane or Nylon Tube

Tube	Tube	Wall	Part Number	Overall Length	Length w/o Tails	Request Quote	Number of Tubes Bonded
O.D.	I.D.
							Suffix Key
inch	inch	inch		inch	Inch
5/32	.093	.031	B4810_	120	108	Request Quote	2 = Natural & Black 3 = Natural, Black & Red 4 = Natural, Black, Red & Blue
5/32	.093	.031	B4812_	24	12	Request Quote
5/32	.093	.031	B4813_	36	24	Request Quote
5/32	.093	.031	B4815_	60	48	Request Quote
5/32	.093	.031	B4817_	84	72	Request Quote
1/8	.062	.031	B4822_	24	12	Request Quote
1/8	.062	.031	B4823_	36	24	Request Quote
1/8	.062	.031	B4824_	48	36	Request Quote
1/8	.062	.031	B4825_	60	48	Request Quote
1/4	.125	.062	B4840_	120	108	Request Quote
1/4	.125	.062	B4843_	36	24	Request Quote
1/4	.125	.062	B4845_	60	48	Request Quote
1/4	.125	.062	B4847_	84	72	Request Quote
3/8	.250	.062	B4860_	120	108	Request Quote
3/8	.250	.062	B4865_	60	48	Request Quote
