Nycoil

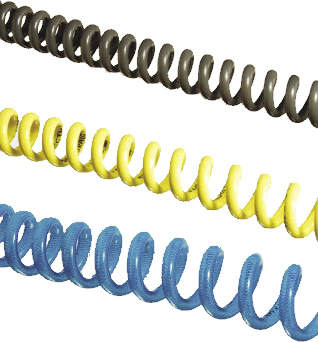

95A Polyurethane Mini-Coil

Types:
Tubing

Vendor: Nycoil

Application:

The tight diameter of these Mini-Coils makes them extremely flexible and ideal for use with robotics, instrumentation, small pneumatic tools, control circuits or any other application requiring either constant or intermittent motion. They include a pigtail on each end for easy fitting installation or connection to other devices. They are offered in a variety of colors for coding purposes or to be aesthetically compatible with other equipment.

Mini-Coils are fabricated with precision tubing that can be used with Push-to-Connect fittings and intended for applications where motion and fatigue for non-flexible connection is a concern. They are supplied with "pigtails" for connection. All "tails" are 6 inches long on both ends. 5/32" units of lengths longer than 60" are manufactured with 1-1/8" Coil O.D. for shorter compacted length.

Typical Applications

• Water & Pneumatic Lines
• Spot Welders
• Machines
• Tools
• Pneumatic Plumbing
• Pick & Place Automation

Specifications

• Extreme Flexibility
• Reduced Bend Radius
• Moisture Resistant
• Abrasion Resistant

Tube:

Polyurethane

Temperature:

- 40° F to + 165° F (- 40° C to + 74° C)

Category:

Pneumatic Tubing

Options:

Custom colors, sizes and lengths are available – please contact JGB Customer Service with your specifications.

Tube OD	Tube ID	Part #	Coil Dimensions					Request Quote	Color Code
			Overall Length	Length w/o Tails	Number of Coils	Coil O.D. "B"	Compact Length "C"
									Suffix Key
inch	inch		inch	inch		inch	inch
1/8	1/16	4822_	24	12	6	3/4	3/4	Request Quote	0 = Clear 1 = Black 2 = Red 3 = Blue 4 = Green 5 = Yellow 6 = Orange 7 = Gray
1/8	1/16	4823_	36	24	12	3/4	1-1/2	Request Quote
1/8	1/16	4824_	48	36	18	3/4	2-1/4	Request Quote
1/8	1/16	4825_	60	48	23	3/4	3	Request Quote
5/32	3/32	4812_	24	12	6	7/8	1	Request Quote	0 = Clear 1 = Black 2 = Red 3 = Blue 4 = Green 5 = Yellow 6 = Orange 7 = Gray 13 = Tranparent Blue
5/32	3/32	4813_	36	24	12	7/8	1-3/4	Request Quote
5/32	3/32	4814_	60	48	23	7/8	3-1/2	Request Quote
5/32	3/32	4817_	84	72	24	1-1/8	3-3/4	Request Quote
5/32	3/32	4810_	120	108	35	1-1/8	5-1/2	Request Quote
1/4	1/8	4843_	36	24	6	1-1/2	1-1/2	Request Quote
1/4	1/8	4845_	60	48	12	1-1/2	3	Request Quote
1/4	1/8	4847_	84	72	18	1-1/2	4-1/2	Request Quote
1/4	1/8	4840_	120	108	26	1-1/2	6-1/2	Request Quote
3/8	1/4	4865_	60	48	7	2-1/2	2-3/4	Request Quote	0 = Clear 1 = Black 2 = Red 3 = Blue 4 = Green
3/8	1/4	4860_	120	108	15	2-1/2	5-3/4	Request Quote
