Nycoil
Lead-In Pigtail or Whip Hose

Types:
Air and Multipurpose Hose

Vendor: Nycoil

Application:

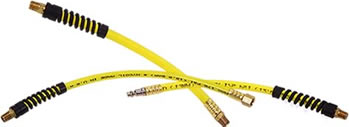

Lead-In Hoses, also called Pigtails, Whip Ends or Whip Hoses, are used on the working end of self-storing air hose, as well as straight hoses, as a means of minimizing costs by:

• Extending the life of the hose - Most hose wear and failure occurs near the point of use, where all of the bending and flexing occurs. A Lead-In Hose will take the brunt of the abuse, giving the hose a much longer service life.
• Protecting the coupler - High vibration and impact tools will damage the valve of a coupler, causing premature failure. A short Lead-In Hose ("snubber") between the coupler and air tool will absorb the shock and vibration, protecting the coupler from these damaging effects.
• Making the worker more productive - Most air supply hoses are heavy or bulky and difficult to work with. A lightweight, flexible Lead-In Hose makes it easier for the worker to manipulate the air tool, reducing fatigue while increasing productivity.

Nycoil Lead-In Hoses are made exclusively from 3/8" Ultra-Lite >>SUPERBRAID<<®, combining lightweight, flexibility, durability and a working pressure (200 psi) that meets the requirements of almost every application. The contemporary looking state-of-the-art strain relief sleeve on the tool end protects the hose at its weakest point (at the barb) while enhancing the appearance of the entire assembly. Other manufacturers use a strain relief that limits the ability of the hose to bend, but Nycoil's was uniquely designed to take advantage of Polyurethane's flexibility, giving the user a much wider range of motion without the possibility of kinking . . . making it ideal for a Lead-In Hose! Available in a variety of hose lengths in four (4) configurations:

• 1/4" Male NPT x 1/4" Rigid Female NPT
• 3/8" Male NPT x 3/8" Rigid Female NPT
• 1/4" Male NPT x 1/4" Rigid Male NPT
• 1/4" Male NPT x 1/4" Body Size Industrial Interchange Plug

Reinforcement:

Polyester braiding

Cover:

85 Durometer Polyurethane

Temperature:

-40°F to +165°F (-40°C to +74°C)

Category:

Pneumatic Hose - Polyurethane

Colors:

Yellow or Transparent Blue
