JGB Private Brand

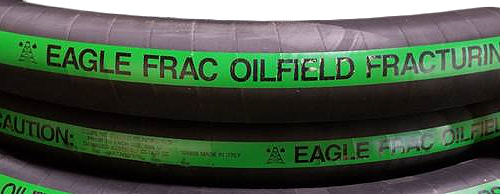

Eagle Frac Oilfield Fracturing Hose

Application:

A rugged and flexible hose designed to convey crude oil and oil slurry mixtures for Frac tank connections.

Tube:

Black Nitrile

Reinforcement:

Multiple plies of synthetic fabric

Cover:

Black Chemivic™, smooth cover with wrapped finish. Also available with ARC treatment for improved abrasion resistance.

Temperature:

-25°F to 180°F (-32°C to 82°C)

Packaging:

100 foot length, coiled and polywrapped

Branding:

JGB Oilfield Fracturing Hose

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

100 ft lengths

ID		NOM. OD		MAX. WP		WEIGHT		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	lb./ft.	kg./m.
3	76.2	3.87	98.30	400	2.76	2.52	3.74	Request Quote
4	101.6	4.76	120.85	400	2.76	2.85	4.21	Request Quote
