JGB Private Brand

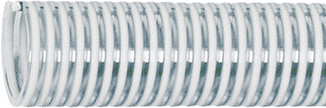

Eagle Clear/White PVC Water Suction Hose

Application:

• Agricultural liquid fertilizer
• Air seeder lines
• Drain lines
• Irrigation lines
• Mining applications (MSHA Approved)
• Pumps, rental and construction dewatering
• Pumps, trash
• Rock dusting
• Water suction – standard duty

Tube:

PVC tube with rigid PVC helix

Temperature:

-5°F to +140°F

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure. (MSHA Approved)

Part #	ID	OD	Min. Bend Radius	Working Pressure	Vacuum Rating	Burst Pressure (psi)			Weight	Standard Length	Request Quote
						water temp
	in	in	in	psi	in/Hg	50°F	96°F	122°F	lbs/ft	ft
007-0160-0085I	1	1.24	3	85	29	313	256	185	0.26	100	Request Quote
007-0200-0085I	1-1/4	1.54	4	85	29	284	228	156	0.34	100	Request Quote
007-0240-0070I	1-1/2	1.82	5	70	29	270	213	142	0.44	100	Request Quote
007-0320-0065I	2	2.28	8	65	29	242	199	128	0.55	100	Request Quote
007-0400-0050I	2-1/2	2.83	10	50	29	228	185	128	0.79	100	Request Quote
007-0480-0060I	3	3.35	12	50	29	199	171	100	0.97	100	Request Quote
007-0640-0050I	4	4.45	14	50	29	199	171	100	1.71	100	Request Quote
007-0960-0040I	6	6.67	25	30	28	156	114	57	3.70	100/20	Request Quote
007-1200-0040I	8	8.83	30	30	28	156	114	57	6.05	20	Request Quote
