AGRIFLEX HOSE

Types:
Large Diameter Hose (LDH)
Oilfield
Suction & Discharge     Sub Type: Water Suction & Discharge Hose
Water Hose     Sub Type: Water Suction & Discharge Hose

Vendor: Key Fire Hose

Application:

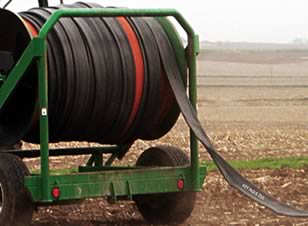

Key Fire AGRIFLEX Lay Flat Hose - LDH, designed for slurry manure transfer, hydraulic fracking and water transfer.

Features

• Synthetic woven liner reinforcement
• Protected and encapsulated in an extruded through the weave nitrile/pvc tube
• Resistant to ozone and abrasion
• Processed water/fresh water transfer
• Lengths available to 660 feet
• High working pressure
• Oversized ID designed to fit most couplings

Hose Construction:

Hose shall be made from 100 percent high tenacity synthetic polyester yarn, circularly woven and completely protected by a through-the-weave extruded PVC/Nitrile rubber, forming a single homogeneous construction without the use of glues or adhesives of any type. Agri-Flex features a thin rib construction to aid abrasion resistance. Agri-Flex shall carry a 3 year written warranty against defects in materials and workmanship. Lengths available to 660 feet.

Lining Properties:

Tensile Strength – shall not be less than 1200 PSI
Elongation – When tested in accordance to UL-19 using certified tensile test apparatus, a small dumbbell sample of lining shall elongate a minimum of 400%.
Accelerated Aging Test – The tensile strength and ultimate elongation of the vulcanized rubber compound which has been subjected to the action of oxygen at a pressure of 300 PSI (±10 PSI) and a temperature of 158°(±18°F) for a period of 96 hours shall retain 60 percent of its originally stated properties.

Physical properties:

Abrasion Resistance - Hose shall withstand 10,000 cycles on the Taber Abrasion Machine (H-22 Wheel: 1/2 kg). Key Hose on request will supply written warranties that Agri-Flex hose meets a minimum 10,000 cycles. Other abrasion test results (UL, DIN, etc.) can be supplied on request of purchaser.
Cold Resistance: - The hose shall pass a burst test after 5000 cycles on a reciprocating abrasion tester – as specified in UL Standard 19.
Cold Resistance Safety Factor - Hose shall have a capability of use down to -35°F. Hose shall have no apparent damage to cover, reinforcement or lining when subjected to the following cold bending test: a 50 ft. length of dry hose is to be firmly coiled and placed in a cold box at -35°F for a duration of 24 hours. Immediately after removal of the hose from the box, hose should be uncoiled and laid out by one operator. Following this procedure, the hose shall not leak nor show any damage to the reinforcement when subjected to the hydrostatic acceptance test stated above.
Ozone Resistance: - Hose shall show no visible signs of cracking to the lining or cover when tested in accordance to ASTM D518 Procedure B (100pphm/118°F/70 hours).
Chemical Resistance: - Exposure to sea water and contamination by most chemical substances, hydrocarbons, oils, alkalis, acids and greases must have no effect on the short or long term performance of the hose. A chemical resistance chart is available and Key Hose will supply specific chemical resistance data on request of purchaser for unique applications.
Heat Resistance: - The hose, when subjected to a static pressure of 100 PSI, shall be capable of withstanding a surface temperature of 1200°F for a minimum of one minute without rupture or damage to the synthetic reinforcement.

Color:

The color shall be nato green. 7” diameter Agri-Flex shall be red.

Couplings:

As required by purchaser. Hose designed for Pierce, Bauer, USC Hi-Flow, Vic field replaceable or crimped couplings.


** Customers are advised special diameters or construction characteristics may
be produced by special request. For more information please contact your JGB Sales Representative.

Performance Chart

*Inside diameter	Weight	Wall thickness	Burst Test	Bend Radius 70 psi	Tensile strength	Request Quote
inches	/pound	inches	psi	feet	tons (US)
4	.90	.140	750	5.1	12.5	Request Quote
4.5	1.00	.140	750	5.4	14.0	Request Quote
5	1.10	.140	600	6.0	15.2	Request Quote
6	1.35	.140	750	6.4	18.9	Request Quote
7	1.85	.140	600	7.6	25.9	Request Quote
8	2.35	.170	600	10.0	26.1	Request Quote
10	3.30	.175	450	11.0	41.7	Request Quote
