Continental ContiTech

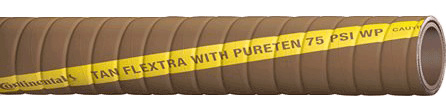

Tan Flextra – Material Handling Hose

Types:
Material Handling Hose     Sub Type: Material Handling Bulk Transfer Hose
Sanitary Food Grade     Sub Type: General Food Hose

Vendor: Continental ContiTech

Application:

For tank truck and in-plant service. Used to convey non-oily abrasive materials such as sand, limestone, plastic pellets and dry abrasive food products.

Tube:

Pureten™ gum rubber

Reinforcement:

Spiral-plied synthetic fabric with wire helix

Cover:

Tan SBR gum rubber (corrugated) with yellow spiral stripe (wrapped impression)

Temperature:

-40°F to 180°F (-40°C to 82°C)

Packaging:

1½"-4" – 100' lengths, coiled and poly-wrapped
5"-6" – 50' lengths, coiled and poly-wrapped

Branding:

Example: Continental ContiTech Tan Flextra® with Pureten™ 75 psi WP

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Order Codes:

549-116

Nom. ID		Nom. OD		Max. WP		Bend Radius		Vacuum HG		Weight		Request Quote
in.	mm	in.	mm	psi	MPa	in.	mm	in.	mm	lbs./ft.	kg/m
1-1/2	38.0	2.09	53.1	75	0.52	4	102	29	737	0.99	1.47	Request Quote
2	50.8	2.60	66.0	75	0.52	4	102	29	737	1.21	1.80	Request Quote
3	76.2	3.63	92.2	75	0.52	6	152	29	737	1.94	2.89	Request Quote
4	101.6	4.69	119.1	75	0.52	9	229	29	737	2.74	4.08	Request Quote
5	127.0	5.78	146.8	75	0.52	12	305	29	737	4.26	6.34	Request Quote
6	152.4	6.78	172.2	75	0.52	15	381	29	737	4.92	7.32	Request Quote

Hose design ratio (burst pressure) 4:1.
