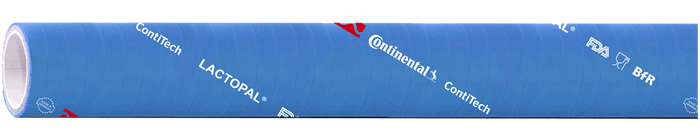

Continental ContiTech
Lactopal Hose

Types:
Sanitary Food Grade

Vendor: Continental ContiTech

Application:

Lactopal® is primarily for liquid transfer It is a multipurpose, high-class hose for the food, pharmaceutical and cosmetic industry The white lining, resistant to fatty and oily products, is homogeneous, smooth and neutral to taste and odor It is resistant to commonly used cleaning and disinfecting products Specially developed for rough working conditions, Lactopal® is robust, ensuring dimensional stability and resists running-over by trucks This hose is manufactured to European standards

Tube:

White, homogeneous and non-porous nitrile lining, absolutely neutral to taste and odor FDA compliant and conforms to 3-A Sanitary Standard 18-03 Meets the recommendation XXI of BfR

Reinforcement:

Synthetic fibers

Cover:

Patterned blue fabric nitrile cover, resistant to ozone, weather, UV and abrasion

Temperature:

-22˚F to 176˚F (-30˚C to 80˚C)

Branding:

Red spiral with an integrated wavy line interrupted by the words "Continental ContiTech Lactopal® FDA glass/fork symbol BfR EG 1935/2004 2023/2006 Made in Germany" on blue cover, spirally applied

SAP #	ID		Nom. OD		Max. WP		Bend Radius		Length	Vacuum HG		Weight		Request a Quote
	in.	mm	in.	mm	psi	MPa	in.	mm	ft.	in.	mm	lb./ft.	kg/m
20836414	1/2	12.7	13/16	21	232	1.6	3 1/8	80	131	17.7	456	0.19	0.28	Request Quote
20836415	5/8	15.9	15/16	24	232	1.6	3 15/16	100	131	17.7	456	0.22	0.32	Request Quote
20836416	3/4	19.1	1 1/8	29	232	1.6	4 1/2	115	131	17.7	456	0.34	0.50	Request Quote
20836417	1	25.4	1 7/16	37	232	1.6	5 15/16	150	131	14.7	380	0.54	0.8	Request Quote
20836418	1 1/4	31.8	1 7/8	48	232	1.6	7 11/16	195	131	14.7	380	0.94	1.40	Request Quote
20836419	1 1/2	38.1	2 3/16	56	232	1.6	9 1/16	230	131	14.7	380	1.14	1.70	Request Quote
20836420	1 9/16	39.7	2 1/4	58	232	1.6	9 7/16	240	131	14.7	380	1.28	1.90	Request Quote
20836421	2	50.8	2 3/4	70	232	1.6	11 13/16	300	100	11.8	304	1.84	2.70	Request Quote
20836422	2 3/8	60.3	3 1/8	80	232	1.6	16 9/16	420	131	11.8	304	2.02	3.00	Request Quote
20836423	2 5/8	66.7	3 1/2	89	232	1.6	17 15/16	455	131	11.8	304	2.55	3.80	Request Quote
20836424	2 3/4	69.9	3 11/16	94	232	1.6	19.5/16	490	131	8.8	228	2.62	3.90	Request Quote
20836425	3	76.2	3 7/8	99	232	1.6	20 11/16	525	100	8.8	228	2.76	4.10	Request Quote
20836426	3 1/8	79.4	4 1/4	108	232	1.6	22 1/16	560	131	8.8	228	3.43	5.10	Request Quote
20836427	4	101.6	5 1/8	130	232	1.6	27 9/16	700	100	8.8	228	4.50	6.70	Request Quote
