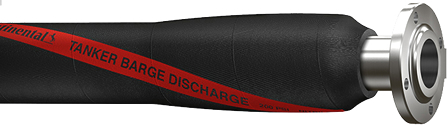

Continental ContiTech
Tanker Barge Discharge Hose

Types:
Petroleum Hose     Sub Type: Petroleum Dock Hose

Vendor: Continental ContiTech

Application:

Tanker Barge Discharge hose is for discharge applications such as the transfer of petroleum based products between docks and barges.

Tube:

Nitrile synthetic rubber for up to 50% aromatics

Reinforcement:

Spiral-plied synthetic fabric with grounding wires

Cover:

Black Wingprene® synthetic rubber

Temperature:

-25°F to 220°F (-32°C to 104°C)

Packaging:

Chloroplast heavy duty packaging

Branding:

Example: Continental ContiTech Tanker Barge Discharge 200 psi WP Nitrile Made in Canada

Couplings:

Coupled with standard built-in steel nipple/150#RFSO flanges.
Available in other bolt hole patterns, materials and floating flanges on request.
Swage nipples are offered up to 10".
Hose assembly is electrically continuous unless otherwise specified by customer.

Order Codes:

541-426 (Nitrile tube)

Lengths:

Custom lengths available.

Part Number	InnerØ	OuterØ	Weight	Working Pressure	Request a Quote
	(in)	(in)	(lbs/ft)	(PSI)
20045864	4	5.09	4.3	200	Request Quote
20104917	6	7.08	6.18	200	Request Quote
20136624	8	9.08	8.06	200	Request Quote
20015537	10	11.06	9.93	200	Request Quote
20259811	12	13.28	13.91	200	Request Quote

Note: Factory coupled hose manufactured according to the code of Federal Regulations standard 33 CFR 154.500 and 33 CFR 156.170.
