Novaflex

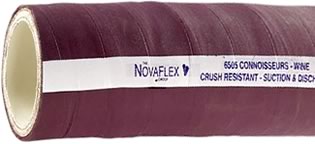

6505 Connoisseurs Wine Hose

Types:
Sanitary Food Grade     Sub Type: General Food Hose

Vendor: Novaflex

Application:

Special kink and crush resistant hose, designed utilizing a multi-ply construction with dual special monofilament helix rods. 3-A certified (certificate # 1803). Meets FDA, USDA requirements. Designed to meet the demands of "cleaning in process".
This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.

Not for continuous steam service

Tube:

White chlorobutyl.

Reinforcement:

Multiple plies of tire cord and dual monofilament helix

Cover:

Purple EPDM

Temperature:

-40° to +240°F (Cleaning In Place to 248°F)

Lengths:

100 ft

Part No.	ID	OD	MBR (in)	Vac (Hg)	Plies	WP psi	WT lbs/ft	Request Quote
6505-00750-00	3/4	1.26	3	Full	2	250	0.39	Request Quote
6505-01000-00	1	1.51	4	Full	2	250	0.48	Request Quote
6505-01500-00	1-1/2	2.01	5	Full	2	250	0.68	Request Quote
6505-02000-00	2	2.78	7	Full	4	250	1.27	Request Quote
6505-02500-00	2-1/2	3.28	13	Full	4	250	1.55	Request Quote
6505-03000-00	3	3.97	16	Full	4	250	1.89	Request Quote
6505-04000-00	4	4.78	20	Full	4	250	2.52	Request Quote
