Novaflex

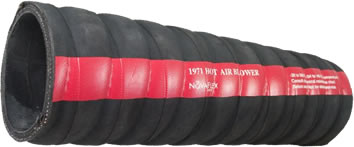

1971 Hot Air Blower Hose Corrugated

Types:
Air and Multipurpose Hose

Vendor: Novaflex

Application:

A flexible lightweight hose designed for transferring hot air to tanks on dried bulk material trucks. EPDM to withstand temperatures up to 325°F on an intermittent basis.
Not for steam service

Tube:

Black EPDM

Reinforcement:

Multiple plies of polyester tire cord with wire helix

Cover:

Black heat resistant EPDM rubber

Temperature:

-30°F to 300°F

Lengths:

100ft

Part No	ID	OD	Plies	WP psi	WT LBS/FT	Request Quote
1971BE-01500-00	1-1/2	1.91	2	200	0.78	Request Quote
1971BE-02000-00	2	2.5	2	200	1.08	Request Quote
1971BE-02375-00	2-3/8	2.88	2	150	1.26	Request Quote
1971BE-02500-00	2-1/2	3	2	150	1.32	Request Quote
1971BE-03000-00	3	3.58	2	125	1.74	Request Quote
1971BE-03500-00	3-1/2	4.08	2	100	2	Request Quote
1971BE-04000-00	4	4.63	2	95	2.7	Request Quote
1971BE-04500-00	4-1/2	5.13	2	75	3.02	Request Quote
1971BE-05000-00	5	5.65	2	75	3.84	Request Quote
1971BE-06000-00	6	6.65	2	60	4.56	Request Quote
1971BE-06625-00	6-5/8	7.32	2	60	5.28	Request Quote
