Novaflex

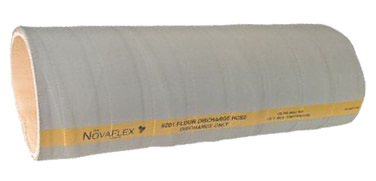

6201 Flour Discharge Hose 3/16 Inch Tube

Types:
Sanitary Food Grade     Sub Type: General Food Hose

Vendor: Novaflex

Application:

Designed for the transfer of dry edible food products such as sugar, flour, beans etc. This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.

Tube:

White FDA natural rubber.

Reinforcement:

Plies of polyester tire cord with static wire

Cover:

Grey SBR high grade weather and abrasion resistant rubber

Temperature:

up to 160°F

Lengths:

100 ft.

Part No	ID	OD	Tube Thickness	Plies	WP psi	WT LBS/FT	Request Quote
6201WG-03000-00	3	3.67	3/16	2	100	1.95	Request Quote
6201WG-04000-00	4	4.69	3/16	2	100	2.5	Request Quote
6201WG-05000-00	5	5.73	3/16	2	100	3.35	Request Quote
