Novaflex

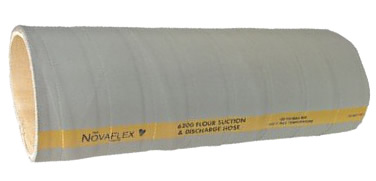

6200 Flour Suction Hose

Types:
Sanitary Food Grade     Sub Type: General Food Hose

Vendor: Novaflex

Application:

•Designed for the transfer of dry edible food products such as sugar, flour, beans etc.
•Use of helix wire is recommended for static dissipation.
• This ultra smooth microbe resistant tube is built on special stainless steel mandrels for cleanliness.

Tube:

3/16" White FDA natural rubber

Reinforcement:

Plies of polyester tire cord with helix wire

Cover:

SBR corrugated grey high grade weather and abrasion resistant synthetic rubber

Temperature:

up to 160°F

Lengths:

100 ft.

Part No	ID	OD	Plies	WP psi	WT LBS/FT	Request Quote
6200WG-02000-00	2	2.68	2	100	1.53	Request Quote
6200WG-03000-00	3	3.73	2	100	2.52	Request Quote
6200WG-04000-00	4	4.81	2	100	3.76	Request Quote
6200WG-05000-00	5	5.83	2	100	5.13	Request Quote
