Novaflex

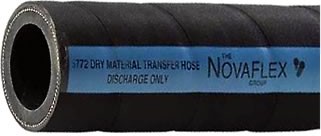

5770 / 5771 / 5772 Bulk Material Discharge Hose

Types:
Material Handling Hose Sub Type: Material Handling Bulk Transfer Hose

Vendor: Novaflex

Application:

Abrasion resistant hose designed for transferring dry bulk material such as cement, sand, lime, fertilizers etc. Static dissipating tube is designed to resist cutting and abrasion.

Cover is abrasion, age and weather resistant.

Tube:

Black abrasion resistant static conductive natural rubber blend

Reinforcement:

Multiple plies of tire cord

Cover:

Black synthetic rubber

Temperature:

-10°F to 180°F

Lengths:

100 ft.

Part No	Type	Tube Gauge	ID	OD	Plies	WP psi	WT LBS/FT	Request Quote
5770-04000-00	5770	1/8	4	4.45	2	100	1.57	Request Quote
5771-04000-00	5771	3/16	4	4.58	2	75	1.94	Request Quote
5772-04000-00	5772	1/4	4	4.70	2	75	2.44	Request Quote
5772-05000-00	5772	1/4	5	5.74	2	75	3.41	Request Quote
5772-06000-00	5772	1/4	6	6.74	2	75	4.04	Request Quote

Novaflex 5776 1/4" tube; suction/hardwall version available
Part No	Type	Tube Gauge	ID	OD	Plies	WP psi	WT LBS/FT	Request Quote
5776-04000-00	5776	1/4	4	6.95	2	75	4.25	Request Quote
