Novaflex

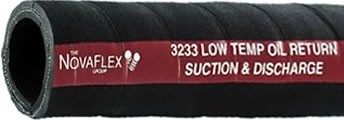

3233 SAE 100R4 Low Temp Oil Return Hose
Types:
Petroleum Hose
Sub Type:
Petroleum Petro Transfer Hose
Vendor: Novaflex
Application:
A special low temperature hydraulic return line thatmeets or exceeds the requirements of SAE100R4 type
hose. This hose provides good flexibility for those
hydraulic applications that operate in temperatures to -65°F.
Tube:
Special Low temperature nitrile
Reinforcement:
Polyester tire cord with steel helix
Cover:
Special black low temperature nitrile
Temperature:
-65°F to +180°F
Lengths:
100 ft.
| Part No | ID | OD | Plies | MBR (in) |
VAC (Hg) |
WP psi |
WT LBS/FT |
Request Quote |
| 3233BT-00750-00 | 3/4 | 1.24 | 2 | 2 | 30" | 300 | 0.49 | Request Quote |
| 3233BT-01000-00 | 1 | 1.48 | 2 | 2 1/2 | 30" | 250 | 0.55 | Request Quote |
| 3233BT-01250-00 | 1-1/4 | 1.73 | 2 | 3 | 30" | 200 | 0.71 | Request Quote |
| 3233BT-01500-00 | 1-1/2 | 1.98 | 2 | 4 | 30" | 150 | 0.80 | Request Quote |
| 3233BT-02000-00 | 2 | 2.52 | 2 | 6 | 30" | 100 | 1.14 | Request Quote |
| 3233BT-02500-00 | 2-1/2 | 3.05 | 2 | 6 | 30" | 100 | 1.58 | Request Quote |
| 3233BT-03000-00 | 3 | 3.56 | 2 | 8 | 30" | 100 | 1.89 | Request Quote |
 |
