Novaflex

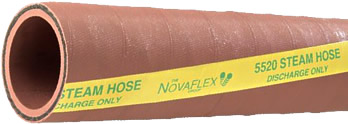

5520 Red Low Pressure Non-Conductive Steam Hose 100psi
Types:
Steam Hose
Vendor: Novaflex
Application:
This textile reinforced steam hose is an excellent flexible light weight hose for transferring steam in medium temperature applications that require an electrically non-conductive hose.Tube:
Red EPDM rubber
Reinforcement:
Plies of fiberglass tire cord
Cover:
Smooth Red weather and abrasion resistant EPDM rubber
Temperature:
Range: up to 338°F
Lengths:
100 ft.
| Part No | ID | OD | Plies Fiberglass |
WP psi |
WT LBS/FT |
Request Quote |
| 5520RE-00500-00 | 1/2 | 1.02 | 4 | 100 | 0.34 | Request Quote |
| 5520RE-00750-00 | 3/4 | 1.27 | 4 | 100 | 0.45 | Request Quote |
| 5520RE-01000-00 | 1 | 1.52 | 4 | 100 | 0.56 | Request Quote |
| 5520RE-01250-00 | 1-1/4 | 1.82 | 4 | 100 | 0.75 | Request Quote |
| 5520RE-01500-00 | 1-1/2 | 2.07 | 4 | 100 | 0.87 | Request Quote |
| 5520RE-02000-00 | 2 | 2.57 | 4 | 100 | 1.11 | Request Quote |
| 5520RE-03000-00 | 3 | 3.76 | 6 | 100 | 2.19 | Request Quote |
 |
