Novaflex
2636 Slip Ring / Coupless Rubber Water Hose

Types:
Water Hose     Sub Type: Water Discharge Hose

Vendor: Novaflex

Application:

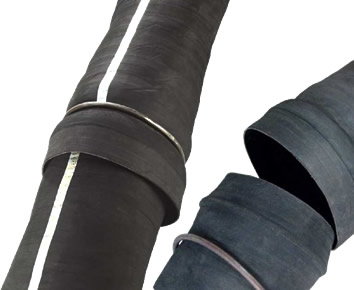

A lightweight lay-flat water discharge hose which is connected without couplings. The hose is built with a male and female end enabling the user to connect hoses. The male end is inserted into the female end and locked into place with a steel ring. The hoses can be easily connected and disconnected in the field without tools. Ideal for de-watering applications, irrigation, light dredging, etc.

Tube:

Black synthetic EPDM rubber

Reinforcement:

Multiple plies polyester tire cord

Cover:

Black synthetic rubber

Temperature:

-40°F to 180°F

Lengths:

Standard lengths, 50 ft.

Part No	ID	OD	Plies	WP psi	WT LBS/FT	Request Quote
2636BE-04000-00	4	4.22	2	100	40	Request Quote
2636BE-06000-00	6	6.22	2	75	62	Request Quote
2636BE-08000-00	8	8.22	2	65	79	Request Quote
2636BE-10000-00	10	10.22	2	50	96	Request Quote
2636BE-12000-00	12	12.20	2	40	120	Request Quote
2636BE-14000-00	14	14.22	2	35	135	Request Quote
2636BE-16000-00	16	16.22	2	35	163	Request Quote
2636BE-24000-00	24	24.22	2	30	235	Request Quote
