Goodyear/Veyance Technologies
MIL-DTL-29210E Steam Hose

Types:
Steam Hose

Vendor: Goodyear/Veyance Technologies

Application:

Updates to new “E” specification

Hose assembly for military applications (such as Navy shipyard use) in temporary services from docks or barges to ships. First Article-approved hose meeting the requirements of MIL-DTL-29210 rev. E. This specification covers metal-lined, wire-reinforced, rubber hose assemblies for conveyance of saturated steam.
Revision E update (key changes):

• Ozone and steam tests as part of conformance testing are required for 1st Article in rev. E
• Part or identifying number (PIN) is much more specific
• The branding requirements have been corrected to brand as MIL-DTL-29210 instead of MIL-PRF-29210C.

Tube:

EPDM

Reinforcement:

2 wire braids

Cover:

Black wrapped finish EPDM

Temperature:

0° to 406°F (-18°C to 208°C)

Packaging:

25’ or 50’ cut lengths

Branding:

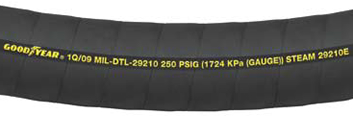

Goodyear® (Quarter/Year Date Code) MIL-DTL-29210 250 PSIG (1724 KPA {Gauge}) steam 29210E

Couplings:

End fittings and special stem design per MIL-DTL-29210E for use with stainless-steel metal liner. Stainless-steel metal liner per MIL-DTL-29210E

Non Stock Samples:

¾"*, 1", 1¼"*, 1½", 2" (*in development)

Order Codes:

539-670

ID		NOM. OD		MAX. WP		WEIGHT		Request a Quote
in.	mm.	in.	mm.	psi	Mpa	lb./ft.	kg./m.
3/4	19.05	1.315	33.40	250	1.723	0.61	0.91	Request Quote
1	25.4	1.61	40.89	250	1.723	0.82	1.22	Request Quote
1 1/2	38.1	2.12	53.85	250	1.723	1.22	1.82	Request Quote
2	50.8	2.71	68.83	250	1.723	1.80	2.68	Request Quote
