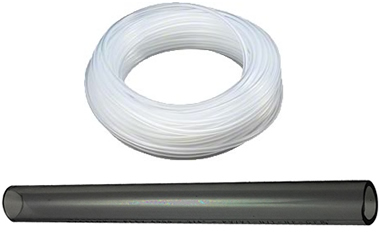

Flex-Tech EVA Tubing

Types:
Tubing

Vendor: Flex-Tech Hose and Tubing

Application:

EVA Hose and Tubing for Agricultural and Farm applications: Ethyl Vinyl Acetate (EVA) hose and tubing, semi-translucent, for use with anhydrous ammonia liquid, herbicides, pesticides, liquid fertilizers and most other chemicals.

Tube:

Ethyl Vinyl Acetate (EVA) 18% VA content

Temperature:

-50°F TO +125°F (-45°C TO +52°C)

Branding:

FLEX-TECH ANHYDROUS AMMONIA LIQUID FERTILIZER (I.D.) EVA Made in USA
NOTE: * (I.D.) Designates the size of the hose in fractions of an inch

Lengths:

25, 50 AND 100 Continuous length coils
Various length bulk coils available with a maximum of one splice per coil

Marking:	Print series will be printed in black ink (black EVA is unbranded) and repeat at a maximum of 24" intervals. Custom print series available, minimum order quantities apply.
Material:	EVA 18% VA content Silicone free FDA 21 CFR 176.170 and 177.1350 Clear, Black (Custom colors available, min. order quantities apply)
Safety factor:	3:1

Item Number	Nom. I.D.	Nom. O.D.	Max W.P.	Standard Pkg Qty	Request Quote
TEV04090x-00	1/4	0.430	150 PSI	300 OR 500 ft	Request Quote
TEV06090x-00	3/8	0.555	125 PSI	300 OR 500 ft	Request Quote
TEV08090x-00	1/2	0.680	100 PSI	300 OR 500 ft	Request Quote
TEV10090x-00	5/8	0.805	80 PSI	300 ft	Request Quote
TEV12090x-00	3/4	.950	60 PSI	250 ft	Request Quote
TEV16090x-00	1	1.180	45 PSI	200 ft	Request Quote
