Hansen
Series 500 - Plugs
Vendor: Hansen
Coupling Type: Quick Disconnects
Description:
1/2in. Nominal
Coupling Category:
One-Way Couplings
|
Male End Connections
|
Female End Connections
|
||||||||
|
Part.No.
|
Thread
|
Dimensions
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Steel
|
Size
|

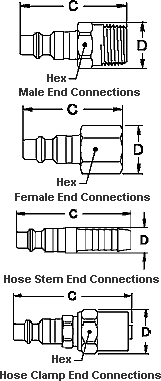

C
|
D
|
HEX
|
Steel
|
Size
|
C
|
D
|
HEX
|
|
50
|
1/4-18 NPTF
|
2.25
|
0.79
|
0.69
|
53-A
|
1/4-18 NPTF
|
1.92
|
0.79
|
0.69
|
|
50G†
|
1/4-18 NPTF
|
2.90
|
0.98
|
0.88
|
53
|
3/8-18 NPTF
|
2.06
|
0.94
|
0.81
|
|
52
|
3/8-18 NPTF
|
2.25
|
0.87
|
0.75
|
53G†
|
3/8-18 NPTF
|
2.9
|
0.98
|
0.88
|
|
52G†
|
3/8-18 NPTF
|
2.90
|
0.98
|
0.88
|
55
|
1/2-14 NPTF
|
2.34
|
1.15
|
1.00
|
|
54
|
1/2-14 NPTF
|
2.44
|
1.01
|
0.88
|
55G†
|
1/2-14 NPTF
|
3.17
|
0.98
|
0.88
|
|
54G†
|
1/2-14 NPTF
|
3.09
|
0.98
|
0.88
|
57
|
3/4-14 NPTF
|
2.44
|
1.37
|
1.19
|
|
56
|
3/4-14 NPTF
|
2.50
|
1.23
|
1.06
|
|||||
|
56G†
|
3/4-14 NPTF
|
3.14
|
1.19
|
1.06
|
|||||
|
Brass
|
|||||||||
|
B-52
|
3/8-18 NPTF
|
2.25
|
0.70
|
0.63
|
|||||
|
B-54
|
1/2-14 NPTF
|
2.44
|
0.77
|
0.88
|
|||||
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part.No.
|
Hose I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
Steel
|
C
|
D
|
Steel
|
I.D.
|
O.D.
|
C
|
D
|
HEX
|
|
|
585
|
5/16"
|
2.66
|
0.69
|
5-PB1
|
1/4"
|
15/32"
|
2.81
|
0.70
|
0.63
|
|
585G†
|
5/16"
|
3.37
|
0.98
|
5-PB3
|
1/4"
|
1/2"
|
2.81
|
0.70
|
0.63
|
|
59
|
3/8"
|
2.66
|
0.69
|
5-PB5
|
1/4"
|
9/16"
|
2.81
|
0.77
|
0.69
|
|
59G†
|
3/8"
|
3.37
|
0.98
|
5-PB7
|
1/4"
|
5/8"
|
2.81
|
0.84
|
0.75
|
|
60
|
1/2"
|
2.66
|
0.75
|
5-PD5
|
3/8"
|
9/16"
|
2.94
|
0.77
|
0.69
|
|
60G†
|
1/2"
|
3.37
|
0.98
|
5-PD7
|
3/8"
|
5/8"
|
2.94
|
0.84
|
0.75
|
|
61
|
3/4"
|
3.5
|
1.00
|
5-PD9
|
3/8"
|
11/16"
|
2.94
|
0.91
|
0.81
|
|
61G†
|
3/4"
|
4.22
|
0.98
|
5-PD11
|
3/8"
|
3/4"
|
2.94
|
0.98
|
0.88
|
|
Brass
|
5-PD13
|
3/8"
|
13/16"
|
2.94
|
1.05
|
0.94
|
|||
|
B-60
|
1/2"
|
2.75
|
0.88
|
5-PD15
|
3/8"
|
7/8"
|
2.94
|
1.12
|
1.00
|
|
5-PP13
|
1/2"
|
13/16"
|
3.62
|
1.05
|
0.94
|
||||
|
5-PP15
|
1/2"
|
7/8"
|
3.62
|
1.12
|
1.00
|
||||
|
5-PP17
|
1/2"
|
15/16"
|
3.62
|
1.19
|
1.06
|
||||
|
5-PP19
|
1/2"
|
1"
|
3.62
|
1.26
|
1.13
|
||||
|
5-PR23
|
3/4"
|
1-1/8"
|
3.75
|
1.40
|
1.25
|
||||
|
5-PR25
|
3/4"
|
1-3/16"
|
3.75
|
1.47
|
1.31
|
||||
|
5-PR27
|
3/4"
|
1-1/4"
|
3.75
|
1.54
|
1.38
|
||||
| †With Bleeder Ball Check – Reduces hose whip when disconnecting. |
| All dimensions in inches. |
 |
