Hansen
Series WA 10000 - Accessories
Vendor: Hansen
Coupling Type: Quick Disconnects
Description:
Refrigerant and Fluid Transfer
Coupling Category:
Two-Way Couplings
|
Adapters
|
Coupling
Dash Size |
Tube
O.D. (inch) |
Part Numbers
|
Dimensions (inches)
|
|||||
|
Adapter
|
O-Ring
|
Thread Size
|
Exposed Length
|
Maximum Diameter
|
Hex Size
|
||||
|
HNBR
|
Neoprene
|

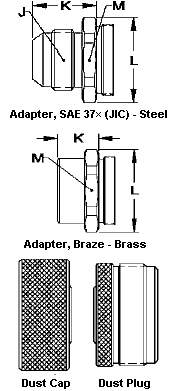

J
|
K
|
L
|
M
|
||||
| Adapter, SAE 37× (JIC) - Steel |
-8
|
3/8
|
W54A32N
|
W11J340
|
W11M340
|
9/16/2018
|
0.81
|
1.10
|
1.00
|
|
-8
|
1/2
|
W54A33N
|
W11J340
|
W11M340
|
3/4/2016
|
0.91
|
1.10
|
1.00
|
|
|
-12
|
5/8
|
W54A52N
|
W11J54041
|
W11M540
|
7/8/2014
|
1.07
|
1.52
|
1.38
|
|
|
-12
|
3/4
|
W54A53N
|
W11J54041
|
W11M540
|
1 1/16-12
|
1.24
|
1.52
|
1.38
|
|
|
-16
|
1
|
W54A62N
|
W11J64041
|
W11M640
|
1 5/16-12
|
1.27
|
1.97
|
1.75
|
|
| Adapter, Braze - Brass |
-8
|
1/2
|
W60L38012
|
W11J340
|
W11M340
|
–
|
0.37
|
1.12
|
1.00
|
|
-12
|
5/8
|
W60L58058
|
W11J54041
|
W11M540
|
–
|
0.72
|
1.54
|
1.38
|
|
|
-16
|
7/8
|
W60L68078
|
W11J64041
|
W11M640
|
–
|
0.99
|
1.96
|
1.75
|
|
|
Coupling
Dash Size |
Part Numbers
|
|||
|
Dust Cap
|
Dust Plug
|
Lock Washer
|
Jam Nut
|
|
|
-8
|
WA 10134 00
|
WA 10137 00
|
W62A34N
|
W28A34N
|
|
-12
|
WA 10154 00
|
WA 10157 00
|
W62A54N
|
W28A54N
|
|
-16
|
WA 10164 00
|
WA 10167 00
|
W62A64N
|
W28A64N
|
| All dimensions in inches. |
 |
