Dixon Flomax Standard Series Connectors
Description:
Nozzles and Receivers
Coupling Category
Dry Disconnect Fittings
Manufacturer
Dixon Dry Disconnects Fittings

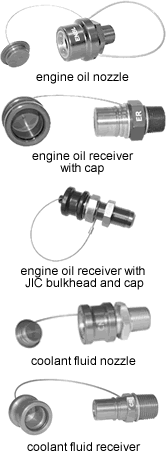

The Flomax standard series connectors consist of four color-coded mating connectors. They have all-metal construction with stainless steel wear components and anodized aircraft grade aluminum non-wear components. Each has easily recognizable labeling and is fully compatible and interchangeable with industry standards.
Engine Oil (red)
|
Nozzles
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| 3/4" NPT | — | engine nozzle ball lock | ENBL |
| 3/4" NPT | — | engine nozzle ball lock with plug | ENBL- P |
| — | — | engine nozzle plug | ENBL-PLUG |
Receivers
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| 3/4" NPT | — | engine receiver | ERS |
| 3/4" NPT | — | engine receiver with cap | ERS-C |
| — | — | engine receiver cap | ERS-CAP |
| 3/4" JIC | — | engine receiver with JIC bulkhead base | ERJ |
| 3/4" JIC | — | engine receiver with JIC bulkhead base and cap | ERJ-C |
Coolant Fluid (teal)
|
Nozzles
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| 1/2" NPT | — | coolant nozzle ball lock | CN |
| 1/2" NPT | — | coolant nozzle ball lock with plug | CN-P |
| — | — | coolant nozzle plug | CN-PLUG |
Receivers
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| 1/2"NPT | — | coolant receiver | CR-S |
| 1/2" NPT | — | coolant receiver with cap | CR-C |
| — | — | coolant receiver cap | CR-CAP |
Hydraulic Oil (gold)
|
Nozzles
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| ... | 3/4" NPT | hydraulic nozzle | HN |
| ... | 3/4" NPT | hydraulic nozzle with plug | HN-P |
| ... | ... | hydraulic nozzle plug | HN-PLUG |
Receivers
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| 3/4" NPT | ... | hydraulic receiver | HR |
| 3/4" NPT | ... | hydraulic receiver with cap | HR-C |
| ... | ... | hydraulic receiver cap | HR-CAP |
Transmission Fluid (violet)
|
Nozzles
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| 1/2" NPT | ... | transmission nozzle | TN |
| 1/2" NPT | ... | transmission nozzle with plug | TN-P |
| ... | ... | transmission nozzle plug | TN-PLUG |
Receivers
| Male Thread | Female Thread | Description | Anodized Aluminum |
| Part # | |||
| ... | 3/8" NPT | transmission receiver | TR |
| ... | 3/8" NPT | transmission receiver with cap | TR-C |
| ... | ... | transmission receiver cap | TR-CAP |
 |
