Series 1000 - Plugs
Description:
1/4in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

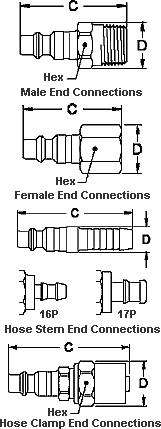

Male End Connections
|
Female End Connections | ||||||||
|
Part.No.
|
Thread
|
Dimension
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Steel
|
Size
|
C
|
D
|
HEX
|
Steel
|
Size
|
C
|
D
|
HEX
|
|
10
|
1/4-18 NPTF
|
1.75
|
0.65
|
0.56
|
11
|
1/4-18 NPTF
|
1.63
|
0.79
|
0.69
|
|
10C§
|
1/4-18 NPTF
|
1.75
|
0.65
|
0.56
|
11G†
|
1/4-18 NPTF
|
2.44
|
0.77
|
0.69
|
|
10G†
|
1/4-18 NPTF
|
1.75
|
0.65
|
0.56
|
13
|
1/8-27 NPTF
|
1.47
|
0.65
|
0.56
|
|
12
|
1/8-27 NPTF
|
1.59
|
0.58
|
0.50
|
15
|
3/8-18 NPTF
|
1.69
|
0.94
|
0.81
|
|
12G†
|
1/8-27 NPTF
|
2.38
|
0.77
|
0.69
|
Brass
|
||||
|
14
|
3/8-18 NPTF
|
1.75
|
0.79
|
0.69
|
11B
|
1/4-18 NPTF
|
1.63
|
0.78
|
0.69
|
|
14G†
|
3/8-18 NPTF
|
2.53
|
0.77
|
0.69
|
Stainless
|
||||
|
10-43
|
7/16-20*
|
1.69
|
0.58
|
0.50
|
LL-11
|
1/4-18 NPTF
|
1.63
|
0.79
|
0.69
|
|
Brass
|
|||||||||
|
B-10
|
1/4-18NPTF
|
1.75
|
0.64
|
0.56
|
|||||
|
Stainless
|
|||||||||
|
LL-10
|
1/4-18 NPTF
|
1.75
|
0.65
|
0.56
|
|||||
| hosetem End Connections | Hose Clamp End Connections | ||||||||
|
Part.No.
|
Hose.I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
Steel
|
C
|
D
|
Steel
|
I.D.
|
O.D.
|
C
|
D
|
HEX
|
|
|
16
|
1/4"
|
2.22
|
0.50
|
3-PA0
|
3/16"
|
7/16"
|
2.25
|
0.63
|
0.56
|
|
16G†
|
1/4"
|
2.97
|
0.77
|
3-PA3
|
3/16"
|
1/2"
|
2.25
|
0.70
|
0.63
|
|
16P‡
|
1/4"
|
2.00
|
0.69
|
3-PB1
|
1/4"
|
15/32"
|
2.31
|
0.70
|
0.63
|
|
16PG†‡
|
1/4"
|
2.75
|
0.77
|
3-PB3
|
1/4"
|
1/2"
|
2.31
|
0.70
|
0.63
|
|
17
|
3/8"
|
2.31
|
0.50
|
3-PB5
|
1/4"
|
9/16"
|
2.31
|
0.77
|
0.69
|
|
17G†
|
3/8"
|
2.96
|
0.77
|
3-PB7
|
1/4"
|
5/8"
|
2.31
|
0.84
|
0.75
|
|
17P‡
|
3/8"
|
2.06
|
0.87
|
3-PB9
|
1/4"
|
11/16"
|
2.31
|
0.91
|
0.81
|
|
17PG†‡
|
3/8"
|
2.85
|
0.87
|
3-PB11
|
1/4"
|
3/4"
|
2.31
|
0.98
|
0.88
|
|
18
|
5/16"
|
2.22
|
0.50
|
3-PC5
|
5/16"
|
9/16"
|
2.38
|
0.77
|
0.69
|
|
Brass
|
3-PC7
|
5/16"
|
5/8"
|
2.38
|
0.84
|
0.75
|
|||
|
B-17
|
3/8"
|
2.31
|
0.50
|
3-PC9
|
5/16"
|
11/16"
|
2.38
|
0.91
|
0.81
|
|
3-PD5
|
3/8"
|
9/16"
|
2.44
|
0.77
|
0.69
|
||||
|
3-PD7
|
3/8"
|
5/8"
|
2.44
|
0.84
|
0.75
|
||||
|
3-PD9
|
3/8"
|
11/16"
|
2.44
|
0.91
|
0.81
|
||||
|
3-PD11
|
3/8"
|
3/4"
|
2.44
|
1.98
|
0.88
|
||||
|
3-PD13
|
3/8"
|
13/16"
|
2.44
|
1.05
|
0.94
|
||||
|
3-PD15
|
3/8"
|
7/8"
|
2.44
|
1.12
|
1.00
|
||||
| * 45° Male Flare § With Ball Check † With Bleeder Ball Check – Reduces hose whip when disconnecting. ‡ For use with push-on style hose. |
| All dimensions in inches. |
 |
