Series 400 - Sockets
Description:
3/8in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

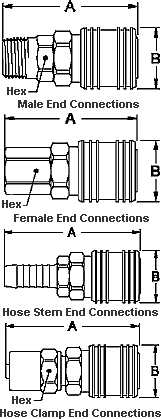

Male End Connections
|
Female End Connections
|
||||||||
|
Part.No.
|
Thread
|
Dimensions
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Size
|
A
|
B
|
HEX
|
Size
|
A
|
B
|
HEX
|
||
|
410-A
|
1/8-27 NPTF
|
2.20
|
1.13
|
0.88
|
400-A
|
1/8-27 NPTF
|
2.10
|
1.13
|
0.88
|
|
410
|
1/4-18 NPTF
|
2.35
|
1.13
|
0.88
|
400
|
1/4-18 NPTF
|
2.10
|
1.13
|
0.88
|
|
430
|
3/8-18 NPTF
|
2.35
|
1.13
|
0.88
|
420
|
3/8-18 NPTF
|
2.35
|
1.13
|
0.88
|
|
450
|
1/2-14 NPTF
|
2.54
|
1.13
|
0.88
|
440
|
1/2-14 NPTF
|
2.62
|
1.13
|
1.00
|
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part.No.
|
Hose.I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
A
|
B
|
I.D.
|
O.D.
|
A
|
B
|
HEX
|
|||
|
4004
|
1/4"
|
2.82
|
1.13
|
40-SB3
|
1/4"
|
1/2"
|
2.92
|
1.13
|
0.63
|
|
4050
|
5/16"
|
2.82
|
1.13
|
40-SB7
|
1/4"
|
5/8"
|
2.92
|
1.13
|
0.75
|
|
4006
|
3/8"
|
2.82
|
1.13
|
40-SD7
|
3/8"
|
5/8"
|
3.04
|
1.13
|
0.75
|
|
4008
|
1/2"
|
2.82
|
1.13
|
40-SD9
|
3/8"
|
11/16"
|
3.04
|
1.13
|
0.81
|
|
40-SD11
|
3/8"
|
3/4"
|
3.04
|
1.13
|
0.88
|
||||
|
40-SD13
|
3/8"
|
13/16"
|
3.04
|
1.13
|
0.94
|
||||
|
40-SP13
|
1/2"
|
13/16"
|
3.67
|
1.13
|
0.94
|
||||
|
40-SP15
|
1/2"
|
7/8"
|
3.67
|
1.13
|
1.00
|
||||
|
40-SP17
|
1/2"
|
15/16"
|
3.67
|
1.13
|
1.06
|
||||
|
40-SP19
|
1/2"
|
1"
|
3.67
|
1.13
|
1.13
|
||||
| All dimensions in inches. |
 |
