Series 500 - Sockets
Description:
1/2in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

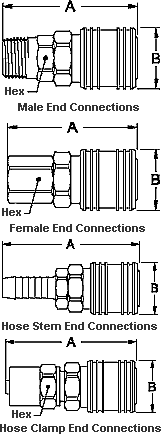

Male End Connections
|
Female End Connections
|
||||||||
|
Part.No.
|
Thread
|
Dimensions
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Size
|
A
|
B
|
HEX
|
Size
|
A
|
B
|
HEX
|
||
|
501
|
1/4-18 NPTF
|
2.77
|
1.19
|
1.00
|
500-A
|
1/4-18 NPTF
|
2.72
|
1.19
|
1.00
|
|
510
|
3/8-18 NPTF
|
2.78
|
1.19
|
1.00
|
500
|
3/8-18 NPTF
|
2.78
|
1.19
|
1.00
|
|
530
|
1/2-14 NPTF
|
2.97
|
1.19
|
1.00
|
520
|
1/2-14 NPTF
|
3.06
|
1.19
|
1.00
|
|
550
|
3/4-14 NPTF
|
2.97
|
1.19
|
1.06
|
540
|
3/4-14 NPTF
|
3.09
|
1.19
|
1.19
|
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part.No.
|
Hose I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
A
|
B
|
I.D.
|
O.D.
|
A
|
B
|
HEX
|
|||
|
570
|
3/8"
|
3.32
|
1.19
|
50-SD7
|
3/8"
|
5/8"
|
3.49
|
1.19
|
0.75
|
|
580
|
1/2"
|
3.24
|
1.19
|
50-SD13
|
3/8"
|
13/16"
|
3.49
|
1.19
|
0.94
|
|
590
|
3/4"
|
4.09
|
1.19
|
50-SP13
|
1/2"
|
13/16"
|
4.09
|
1.19
|
0.94
|
|
50-SP15
|
1/2"
|
7/8"
|
4.09
|
1.19
|
1.00
|
||||
|
50-SP17
|
1/2"
|
15/16"
|
4.09
|
1.19
|
1.06
|
||||
|
50-SP19
|
1/2"
|
1"
|
4.09
|
1.19
|
1.13
|
||||
|
50-SR23
|
3/4"
|
1-1/8"
|
4.22
|
1.19
|
1.25
|
||||
|
50-SR25
|
3/4"
|
1-3/16"
|
4.22
|
1.19
|
1.31
|
||||
|
50-SR27
|
3/4"
|
1-1/4"
|
4.22
|
1.19
|
1.38
|
||||
| All dimensions in inches. |
 |
