Series 3000 - Sockets
Description:
1/4in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|
Male End Connections
|
Female End Connections
|
||||||||
|
Part No.
|
Thread
|

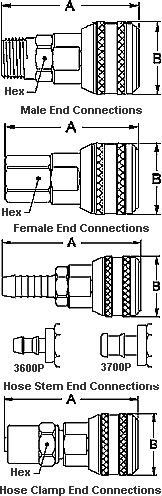

Dimensions
|
Part No.
|
Thread
|
Dimensions
|
||||
|
Brass
|
Size
|
A
|
B
|
HEX
|
Brass
|
Size
|
A
|
B
|
HEX
|
|
2900
|
1/8-27 NPTF
|
2.11
|
1.19
|
0.69
|
2800
|
1/8-27 NPTF
|
1.95
|
1.19
|
0.69
|
|
3100
|
1/4-18 NPTF
|
2.26
|
1.19
|
0.69
|
3000
|
1/4-18 NPTF
|
2.17
|
1.19
|
0.69
|
|
3300
|
3/8-18 NPTF
|
2.26
|
1.19
|
0.69
|
3200
|
3/8-18 NPTF
|
2.23
|
1.19
|
0.75
|
|
3000-43
|
7/16–20*
|
2.20
|
1.19
|
0.69
|
|||||
|
3000-63
|
5/8–18*
|
2.33
|
1.19
|
0.69
|
|||||
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part No.
|
Hose I.D.
|
Dimensions
|
Part No.
|
Hose
|
Dimensions
|
||||
|
Brass
|
A
|
B
|
Brass
|
I.D.
|
O.D.
|
A
|
B
|
HEX
|
|
|
3600
|
1/4"
|
2.70
|
1.19
|
3-SA0
|
3/16"
|
7/16"
|
2.73
|
1.19
|
0.56
|
|
3600P‡
|
1/4"
|
2.48
|
1.19
|
3-SA3
|
3/16"
|
1/2"
|
2.73
|
1.19
|
0.63
|
|
3700
|
3/8"
|
2.69
|
1.19
|
3-SB1
|
1/4"
|
15/32"
|
2.79
|
1.19
|
0.63
|
|
3700P‡
|
3/8"
|
2.58
|
1.19
|
3-SB3
|
1/4"
|
1/2"
|
2.79
|
1.19
|
0.63
|
|
3800
|
5/16"
|
2.70
|
1.19
|
3-SB5
|
1/4"
|
9/16"
|
2.79
|
1.19
|
0.69
|
|
3-SB7
|
1/4"
|
5/8"
|
2.79
|
1.19
|
0.75
|
||||
|
3-SB9
|
1/4"
|
11/16"
|
2.79
|
1.19
|
0.81
|
||||
|
3-SB11
|
1/4"
|
3/4"
|
2.79
|
1.19
|
0.88
|
||||
|
3-SC5
|
5/16"
|
9/16"
|
2.86
|
1.19
|
0.69
|
||||
|
3-SC7
|
5/16"
|
5/8"
|
2.86
|
1.19
|
0.75
|
||||
|
3-SC9
|
5/16"
|
11/16"
|
2.86
|
1.19
|
0.81
|
||||
|
3-SD5
|
3/8"
|
9/16"
|
2.92
|
1.19
|
0.69
|
||||
|
3-SD7
|
3/8"
|
5/8"
|
2.92
|
1.19
|
0.75
|
||||
|
3-SD9
|
3/8"
|
11/16"
|
2.92
|
1.19
|
0.81
|
||||
|
3-SD11
|
3/8"
|
3/4"
|
2.92
|
1.19
|
0.88
|
||||
|
3-SD13
|
3/8"
|
13/16"
|
2.92
|
1.19
|
0.94
|
||||
