Series 600 - Plugs
Description:
1/4in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

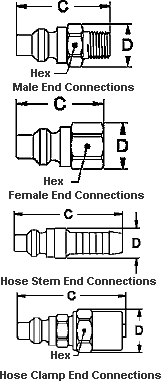

Male End Connections
|
Female End Connections
|
||||||||
|
Part.No.
|
Thread
|
Dimensions
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Brass
|
Size
|
C
|
D
|
HEX
|
Brass
|
Size
|
C
|
D
|
HEX
|
|
01A
|
1/8-27 NPTF
|
1.41
|
0.63
|
0.56
|
00A
|
1/8-27 NPTF
|
1.22
|
0.63
|
0.56
|
|
03A
|
1/4-18 NPTF
|
1.56
|
0.63
|
0.56
|
02A
|
1/4-18 NPTF
|
1.41
|
0.77
|
0.69
|
|
04-R
|
9/16-18†
|
1.41
|
0.63
|
0.56
|
05-R
|
9/16-18‡
|
1.38
|
0.77
|
0.69
|
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part.No.
|
Hose I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
Brass
|
C
|
D
|
Brass
|
I.D.
|
O.D.
|
C
|
D
|
HEX
|
|
|
07A
|
1/4"
|
2.03
|
0.56
|
6-B3
|
1/4"
|
1/2"
|
2.13
|
0.70
|
0.63
|
|
08A
|
5/16"
|
2.03
|
0.56
|
6-B5
|
1/4"
|
9/16"
|
2.13
|
0.77
|
0.69
|
|
09A
|
3/8"
|
2.04
|
0.56
|
6-B7
|
1/4"
|
5/8"
|
2.13
|
0.84
|
0.75
|
|
6-B9
|
1/4"
|
11/16"
|
2.13
|
0.91
|
0.81
|
||||
|
6-D5
|
3/8"
|
9/16"
|
2.25
|
0.77
|
0.69
|
||||
|
6-D7
|
3/8"
|
5/8"
|
2.25
|
0.84
|
0.75
|
||||
|
6-D9
|
3/8"
|
11/16"
|
2.25
|
0.91
|
0.81
|
||||
|
6-D11
|
3/8"
|
3/4"
|
2.25
|
0.98
|
0.88
|
||||
| † R.H. Thread - 30° Female Flare ‡ R.H. Thread - Inverted Flare. All dimensions in inches. |
 |
