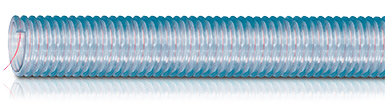

Kuriyama - Tigerflex / WE Series Food Grade PVC Material Handling Hose
Vendor: Kuriyama
Category: Material Handling Hose
Sub Type: Material Handling Bulk Transfer Hose
Application:
Food Grade PVC Material Handling Hose With Grounding Wire
- Food grade material handling - standard duty
- Material handling - standard duty
- Pharmaceutical product transfer
- Plastic processing equipment
- Pneumatic conveying equipment
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.
Features and Advantages
- Superior Product Design - Tigerflex™ WE™ series hoses are an industry standard for pneumatic material handling, due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.
- Food Grade Materials - Hose complies with applicable FDA(03) requirements. Hose approved by USDA(12) for use in meat and poultry plants.
- Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
- Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
- Convoluted Outer Cover - Provides increased hose flexibility.
- Phthalate Free
CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
Tube:
PVC tube
Reinforcement:
Rigid PVC helix and grounding wire
Temperature:
-4 to 150°F -20 to +65°C
Actual service temperature range is application-dependent.
| Series Number | ID | OD | Working Pressure (psi) | Vacuum Rating Hg (in) | Min. Bending Radius at 68°F (in) |
Standard Length (ft) |
Weight (lbs/ft) | Request a Quote | ||||
| (in) | (mm) | (in) | (mm) | 68°F | 104°F | 68°F | 104°F | |||||
| WE100 | 1 | 25.4 | 1.3 | 33 | 55 | 30 | 28 | 28 | 2 | 100/50 | 0.21 | Request Quote |
| WE125 | 1-1/4 | 32 | 1.65 | 42 | 50 | 25 | 28 | 28 | 2 | 100/60/50 | 0.33 | Request Quote |
| WE150 | 1-1/2 | 38.1 | 1.93 | 49 | 50 | 25 | 28 | 28 | 3 | 100/60/50 | 0.43 | Request Quote |
| WE200 | 2 | 50.8 | 2.48 | 63 | 40 | 20 | 28 | 24 | 4 | 100/60/50 | 0.58 | Request Quote |
| WE225 | 2-1/4 | 57.2 | 2.8 | 71 | 40 | 20 | 28 | 24 | 4.5 | 100/60/50 | 0.65 | Request Quote |
| WE250 | 2-1/2 | 63.5 | 3.07 | 76.5 | 40 | 20 | 28 | 24 | 5 | 100/60/50 | 0.89 | Request Quote |
| WE300 | 3 | 76.2 | 3.64 | 91.5 | 40 | 20 | 28 | 24 | 6 | 100/60/50 | 1.25 | Request Quote |
| WE350 | 3-1/2 | 88.9 | 4.27 | 108.5 | 35 | 18 | 28 | 24 | 8 | 100/60/50 | 1.55 | Request Quote |
| WE400 | 4 | 101.6 | 4.72 | 120 | 35 | 18 | 24 | 20 | 10 | 100/60/50 | 1.93 | Request Quote |
| WE500 | 5 | 127 | 5.74 | 146 | 30 | 15 | 24 | 20 | 16 | 60/50/20 | 2.4 | Request Quote |
| WE600 | 6 | 152.4 | 6.81 | 175.5 | 30 | 15 | 24 | 20 | 18 | 60/50/20 | 3.7 | Request Quote |
| WE800 | 8 | 204.8 | 9.06 | 230 | 20 | 10 | 20 | 18 | 36 | 20 | 5.62 | Request Quote |
| WE45M | 1.77 | 45 | 2.2 | 55.8 | 45 | 25 | 28 | 24 | 4 | 60 | 0.46 | Request Quote |
| WE57M | 2.24 | 57 | 2.76 | 70 | 40 | 20 | 28 | 24 | 4.5 | 60 | 0.64 | Request Quote |
| WE60M | 2.36 | 60 | 2.8 | 71.1 | 40 | 20 | 28 | 24 | 4.5 | 100/50 | 0.71 | Request Quote |
BSE/TSE(02) , Phthalate Free(10), FDA(03),RoHS(11), USDA(12)
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
